[SLH2007] J094745.60+632523.9
All names: Gaia DR2 1063743419309512832, WD 0943+636, Gaia DR3 1063743419309512832, SDSS J094745.63+632524.0, SDSS J094745.62+632524.0, [SLH2007] J094745.60+632523.9, Gaia EDR3 1063743419309512832
| Parameter | Unit | Gaia EDR3 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | sdss-wdms.org (29/04/2016) | Simbad | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 09 47 45.58 (0.4) | 09 47 45.65 | 09 47 45.59 (0.5) | 09 47 45.62 | 09 47 45.62 (44) | 09 47 45.89 | 09 47 45.63 | ||||
| Declination | 63 25 24.19 (0.5) | 63 25 24.34 | 63 25 24.19 (0.9) | 63 25 23.99 | 63 25 24.02 (43) | 63 25 16.68 | 63 25 24.03 | ||||
| Spectral type | DA+M | DA+M | DA+dMe | DA dM | DA+M | DA+MS | |||||
| Effective temperature | [K] | 12348.0 | 15964.0 (1181) | 18660.0 (788) | |||||||
| log(g) | [cgs] | 8.33 | 7.56 (0.3) | 7.52 (0.1) | |||||||
| Mass | [M☉] | 0.81 | 0.4 (0.1) | ||||||||
| log(Luminosity) | [L☉] | ||||||||||
| Cooling age | [Gyr] | 0.5643 | |||||||||
| log(H/He) | |||||||||||
| log(C/He) | |||||||||||
| log(Ca/He) | |||||||||||
| log(Ca/H) | |||||||||||
| log(C/H) | |||||||||||
| log(N/H) | |||||||||||
| log(O/H) | |||||||||||
| log(Na/H) | |||||||||||
| log(Mg/H) | |||||||||||
| log(Al/H) | |||||||||||
| log(Si/H) | |||||||||||
| log(P/H) | |||||||||||
| log(S/H) | |||||||||||
| log(Sc/H) | |||||||||||
| log(Ti/H) | |||||||||||
| log(Cr/H) | |||||||||||
| log(Mn/H) | |||||||||||
| log(Fe/H) | |||||||||||
| log(Ni/H) | |||||||||||
| Parallax | [mas] | 2.10 (0.7) | 2.07 (1) | ||||||||
| Distance | [pc] | 476.96 (159) | 483.18 (259) | 144.00 (7) | |||||||
| Composition | H | ||||||||||
| Proper motion (right ascension) | [mas/yr] | -12.80898759 (0.5) | -12.42101807 (0.9) | ||||||||
| Proper motion (declination) | [mas/yr] | -1.926752545 (0.6) | -2.849520877 (2) | ||||||||
| Variability | |||||||||||
| Magnetic | |||||||||||
| Bd | [MG] | ||||||||||
| Infrared excess (disk) | |||||||||||
| Binarity | WDMS | WDMS | WDMS | ||||||||
| B magnitude | |||||||||||
| V magnitude | |||||||||||
| R magnitude | |||||||||||
| I magnitude | |||||||||||
| J magnitude | |||||||||||
| H magnitude | |||||||||||
| K magnitude | |||||||||||
| u magnitude | 20.99 (0.1) | 20.85 | 20.83 (0.1) | 20.85 | 20.85 (0.1) | ||||||
| g magnitude | 20.77 (0.03) | 20.47 | 20.46 (0.03) | 20.47 | 20.48 (0.05) | ||||||
| r magnitude | 21.23 (0.07) | 20.66 | 20.59 (0.04) | 20.65 | 20.65 (0.2) | ||||||
| i magnitude | 21.97 (0.2) | 21.07 | 21.02 (0.1) | 21.07 | 21.07 (0.7) | ||||||
| z magnitude | 21.82 (0.6) | 22.48 | 22.51 (0.8) | 22.48 | 22.48 (0.7) | ||||||
| G magnitude | 20.51 (0.1) | 20.58 | |||||||||
| BP magnitude | 20.51 (0.1) | 20.56 | |||||||||
| RP magnitude | 20.61 (0.2) | 20.52 | |||||||||
| Pan g magnitude | |||||||||||
| Pan r magnitude | |||||||||||
| Pan i magnitude | |||||||||||
| Pan z magnitude | |||||||||||
| Pan y magnitude | |||||||||||
| E(B-V) | 0.028 | ||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

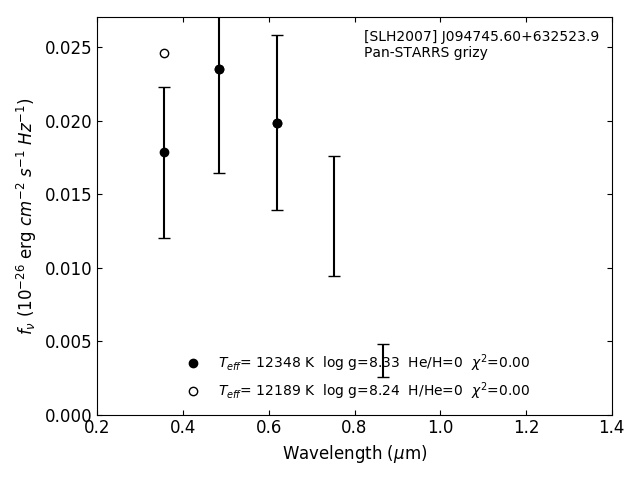

Photometric fit
