2MASS J13235532+3018284
All names: WIRED J132355.29+301827.9, GALEX J132355.3+301828, Gaia DR3 1462423410666703744, TIC 321416111, LSPM J1323+3018, LP 323-68, 2MASS J13235532+3018284, Gaia EDR3 1462423410666703744, SDSS J132355.29+301828.0, WD 1321+305, SDSS J132355.29+301827.9, Gaia DR2 1462423410666703744, [HHD2009] SDSS J1323+3018, USNO-B1.0 1203-00211512, SDSS J132355.28+301827.9, NLTT 33987
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Vincent et al. 2024 | Simbad | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 13 23 55.14 (0.1) | 13 23 55.29 | 13 23 55.15 (0.1) | 13 23 55.14 | 13 23 55.35 (0.1) | 13 23 54.89 | 13 23 55.29 | |||||
| Declination | 30 18 27.52 (0.08) | 30 18 27.93 | 30 18 27.53 (0.1) | 30 18 27.52 | 30 18 27.98 (0.08) | 30 18 22.68 | 30 18 27.97 | |||||
| Spectral type | DA+M | DA | DA+M | DA7.2 | DA+M | DA+MS | ||||||
| Effective temperature | [K] | 7016.0 | 6386.0 (83) | 7153.0 (58) | ||||||||
| log(g) | [cgs] | 7.51 | 7.17 (0.03) | 7.25 (0.1) | ||||||||
| Mass | [M☉] | 0.347 | 0.235 (0.01) | |||||||||
| log(Luminosity) | [L☉] | |||||||||||
| Cooling age | [Gyr] | 0.8637 | ||||||||||
| log(H/He) | ||||||||||||
| log(C/He) | ||||||||||||
| log(Ca/He) | ||||||||||||
| log(Ca/H) | ||||||||||||
| log(C/H) | ||||||||||||
| log(N/H) | ||||||||||||
| log(O/H) | ||||||||||||
| log(Na/H) | ||||||||||||
| log(Mg/H) | ||||||||||||
| log(Al/H) | ||||||||||||
| log(Si/H) | ||||||||||||
| log(P/H) | ||||||||||||
| log(S/H) | ||||||||||||
| log(Sc/H) | ||||||||||||
| log(Ti/H) | ||||||||||||
| log(Cr/H) | ||||||||||||
| log(Mn/H) | ||||||||||||
| log(Fe/H) | ||||||||||||
| log(Ni/H) | ||||||||||||
| Parallax | [mas] | 7.81 (0.1) | 7.76 (0.2) | 7.81 | 7.81 (0.1) | |||||||
| Distance | [pc] | 128.07 (2) | 128.79 (3) | 128.07 | 128.07 (2) | |||||||
| Composition | H | |||||||||||
| Proper motion (right ascension) | [mas/yr] | -165.808301 (0.1) | -165.5737364 (0.2) | -165.808 (0.1) | ||||||||
| Proper motion (declination) | [mas/yr] | -28.75270644 (0.1) | -28.86431565 (0.3) | -28.753 (0.1) | ||||||||
| Variability | ||||||||||||
| Magnetic | ||||||||||||
| Bd | [MG] | |||||||||||
| Infrared excess (disk) | ||||||||||||
| Binarity | yes | WDMS | WDMS | |||||||||
| B magnitude | 19.30 | |||||||||||
| V magnitude | ||||||||||||
| R magnitude | 18.60 | |||||||||||
| I magnitude | ||||||||||||
| J magnitude | 16.39 (0.1) | |||||||||||
| H magnitude | 16.16 (0.2) | |||||||||||
| K magnitude | 15.73 (0.2) | |||||||||||
| u magnitude | 19.00 (0.02) | 19.00 (0.02) | 19.02 | 19.03 (0.04) | ||||||||
| g magnitude | 18.53 (0.008) | 18.53 (0.008) | 18.52 | 18.54 (0.02) | ||||||||
| r magnitude | 18.40 (0.008) | 18.40 (0.008) | 18.39 | 18.42 (0.02) | ||||||||
| i magnitude | 18.31 (0.01) | 18.31 (0.01) | 18.30 | 18.32 (0.02) | ||||||||
| z magnitude | 18.02 (0.03) | 18.02 (0.03) | 18.02 | 18.04 (0.04) | ||||||||
| G magnitude | 18.32 (0.01) | 18.33 | 18.32 | 18.32 (0.003) | ||||||||
| BP magnitude | 18.54 (0.01) | 18.51 | ||||||||||
| RP magnitude | 17.89 (0.009) | 17.86 | ||||||||||
| Pan g magnitude | 18.51 (0.01) | |||||||||||
| Pan r magnitude | 18.39 (0.009) | |||||||||||
| Pan i magnitude | 18.32 (0.004) | |||||||||||
| Pan z magnitude | 18.12 (0.007) | |||||||||||
| Pan y magnitude | 17.80 (0.008) | |||||||||||
| E(B-V) | 0.007 | |||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

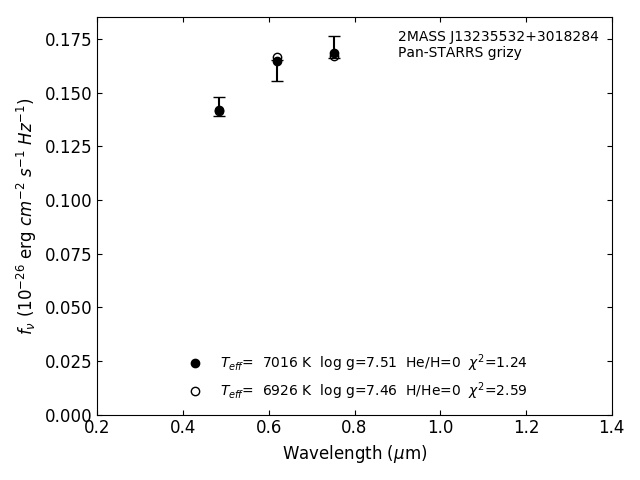

Photometric fit
