GD 765
All names: Gaia DR2 2468060664104501376, TIC 419013508, EGGR 514, GD 765, BPS CS 22166-0026, GALEX J010522.0-135909, Gaia DR3 2468060664104501376, WD0102-142, Gaia EDR3 2468060664104501376, PHL 980, WD 0102-142, 2MASS J01052212-1359113, USNO-B1.0 0760-00011619, MCT 0102-1415, EC 01028-1415
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | MWDD H | Gaia DR2 | Stilism | Gianninas et al. 2011 | Koester et al. 2009 | Koester et al. 2001 | Vincent et al. 2024 | Simbad | White Dwarf Catalog (McCook & Sion 1999) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 01 05 22.16 (0.04) | 01 05 22.16 (0.06) | 01 05 22.20 | 01 05 22.16 | 01 05 22.11 (0.04) | 01 05 21.12 | ||||||
| Declination | -13 59 10.17 (0.03) | -13 59 10.20 (0.05) | -13 59 13.00 | -13 59 10.17 | -13 59 10.97 (0.03) | -13 59 02.76 | ||||||
| Spectral type | DA | DA | DA | DA | DA2.4 | DA | ||||||
| Effective temperature | [K] | 18335.0 | 20950.0 (332) | 19945.0 (29) | 19695.0 (64) | 19713.0 (268) | ||||||
| log(g) | [cgs] | 7.82 | 7.99 (0.05) | 7.86 (0.005) | 7.84 (0.01) | 7.92 (0.01) | ||||||
| Mass | [M☉] | 0.524 | 0.62 (0.03) | 0.54 | 0.58 (0.01) | |||||||
| log(Luminosity) | [L☉] | |||||||||||
| Cooling age | [Gyr] | 0.0679 | ||||||||||
| log(H/He) | ||||||||||||
| log(C/He) | ||||||||||||
| log(Ca/He) | ||||||||||||
| log(Ca/H) | ||||||||||||
| log(C/H) | ||||||||||||
| log(N/H) | ||||||||||||
| log(O/H) | ||||||||||||
| log(Na/H) | ||||||||||||
| log(Mg/H) | ||||||||||||
| log(Al/H) | ||||||||||||
| log(Si/H) | ||||||||||||
| log(P/H) | ||||||||||||
| log(S/H) | ||||||||||||
| log(Sc/H) | ||||||||||||
| log(Ti/H) | ||||||||||||
| log(Cr/H) | ||||||||||||
| log(Mn/H) | ||||||||||||
| log(Fe/H) | ||||||||||||
| log(Ni/H) | ||||||||||||
| Parallax | [mas] | 8.51 (0.06) | 8.42 (0.07) | 8.51 | 8.51 (0.06) | |||||||
| Distance | [pc] | 117.49 (0.8) | 118.76 (1) | 161.00 | 117.49 | 117.49 (0.8) | ||||||
| Composition | H | H | ||||||||||
| Proper motion (right ascension) | [mas/yr] | 45.50495357 (0.06) | 45.43636583 (0.2) | 45.505 (0.06) | ||||||||
| Proper motion (declination) | [mas/yr] | 49.62264988 (0.07) | 49.84830975 (0.1) | 49.623 (0.07) | ||||||||
| Variability | ||||||||||||
| Magnetic | ||||||||||||
| Bd | [MG] | |||||||||||
| Infrared excess (disk) | ||||||||||||
| Binarity | ||||||||||||
| B magnitude | 15.93 | 15.93 | 15.96 | |||||||||
| V magnitude | 16.04 | |||||||||||
| R magnitude | 16.20 | |||||||||||
| I magnitude | ||||||||||||
| J magnitude | 16.43 (0.1) | |||||||||||
| H magnitude | 16.54 (0.3) | |||||||||||
| K magnitude | ||||||||||||
| u magnitude | ||||||||||||
| g magnitude | ||||||||||||
| r magnitude | ||||||||||||
| i magnitude | ||||||||||||
| z magnitude | ||||||||||||
| G magnitude | 16.05 (0.003) | 16.06 | 16.05 | 16.05 (0.003) | ||||||||
| BP magnitude | 15.96 (0.003) | 15.92 | ||||||||||
| RP magnitude | 16.23 (0.004) | 16.22 | ||||||||||
| Pan g magnitude | 15.90 (0.007) | |||||||||||
| Pan r magnitude | 16.23 (0.004) | |||||||||||
| Pan i magnitude | 16.55 (0.004) | |||||||||||
| Pan z magnitude | 16.80 (0.005) | |||||||||||
| Pan y magnitude | 16.97 (0.006) | |||||||||||
| E(B-V) | 0.002 | |||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

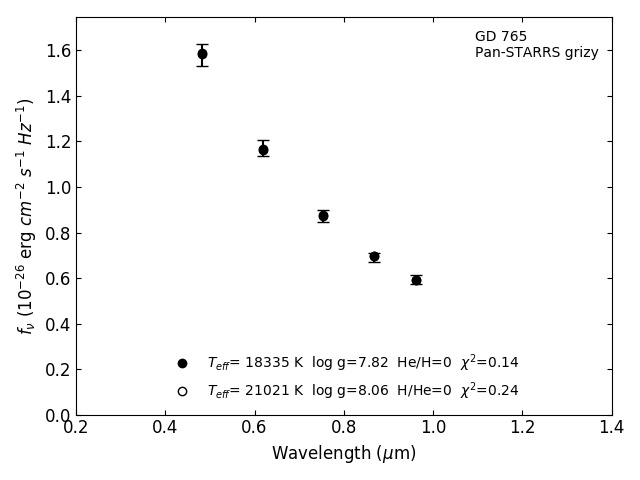

Photometric fit
