LP197-006
All names: WDS J02260+4228B, LP197-006, Gaia DR2 339492052075797376, NLTT 7949, J0225+4228, ** LDS 3383B, LSPM J0225+4228E, LP 197-6, WD 0222+422.1, Gaia EDR3 339492052075797376, Gaia DR3 339492052075797376
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | Caron et al. 2023 | MWDD H | MWDD HE | Gaia DR2 | Stilism | Vincent et al. 2024 | Simbad | Gentile Fusillo et al. 2018 | White Dwarf Catalog (McCook & Sion 1999) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 02 25 53.17 (0.2) | 02 25 52.59 (0.3) | 02 25 53.17 | 02 25 52.59 (0.2) | 02 25 52.52 | 02 25 50.62 | ||||||
| Declination | 42 28 00.20 (0.2) | 42 28 03.52 (0.3) | 42 28 00.20 | 42 28 03.53 (0.2) | 42 28 00.32 | 42 28 12.00 | ||||||
| Spectral type | DC | DC14 | DC14 | DA | DC14 | DC14 | ||||||
| Effective temperature | [K] | 4366.0 (42) | 6213.0 | 5959.0 | 4335.0 (120) | |||||||
| log(g) | [cgs] | 7.99 (0.03) | 7.94 | 7.79 | 7.97 (0.06) | |||||||
| Mass | [M☉] | 0.572 (0.03) | 0.555 | 0.453 | 0.561 (0.05) | |||||||
| log(Luminosity) | [L☉] | |||||||||||
| Cooling age | [Gyr] | 8.3400 | 1.8620 | 1.8420 | ||||||||
| log(H/He) | ||||||||||||
| log(C/He) | ||||||||||||
| log(Ca/He) | ||||||||||||
| log(Ca/H) | ||||||||||||
| log(C/H) | ||||||||||||
| log(N/H) | ||||||||||||
| log(O/H) | ||||||||||||
| log(Na/H) | ||||||||||||
| log(Mg/H) | ||||||||||||
| log(Al/H) | ||||||||||||
| log(Si/H) | ||||||||||||
| log(P/H) | ||||||||||||
| log(S/H) | ||||||||||||
| log(Sc/H) | ||||||||||||
| log(Ti/H) | ||||||||||||
| log(Cr/H) | ||||||||||||
| log(Mn/H) | ||||||||||||
| log(Fe/H) | ||||||||||||
| log(Ni/H) | ||||||||||||
| Parallax | [mas] | 20.11 (0.2) | 19.94 (0.4) | 19.94 (0.4) | 20.11 | 20.11 (0.2) | 19.82 (0.2) | |||||
| Distance | [pc] | 49.74 (0.5) | 50.15 (1) | 50.16 (1) | 49.74 | 49.74 (0.5) | 50.45 (0.4) | |||||
| Composition | H | |||||||||||
| Proper motion (right ascension) | [mas/yr] | 399.9406398 (0.3) | 399.9094596 (0.5) | 399.941 (0.3) | 397.4046392 | |||||||
| Proper motion (declination) | [mas/yr] | -207.737335 (0.2) | -207.1145664 (0.5) | -207.737 (0.2) | -206.7686543 | |||||||
| Variability | ||||||||||||
| Magnetic | ||||||||||||
| Bd | [MG] | |||||||||||
| Infrared excess (disk) | ||||||||||||
| Binarity | ||||||||||||
| B magnitude | ||||||||||||
| V magnitude | ||||||||||||
| R magnitude | ||||||||||||
| I magnitude | ||||||||||||
| J magnitude | 17.47 (0.03) | |||||||||||
| H magnitude | ||||||||||||
| K magnitude | ||||||||||||
| u magnitude | ||||||||||||
| g magnitude | ||||||||||||
| r magnitude | ||||||||||||
| i magnitude | ||||||||||||
| z magnitude | ||||||||||||
| G magnitude | 18.97 (0.003) | 19.00 | 18.97 | 18.97 (0.004) | 17.33 | |||||||
| BP magnitude | 19.64 (0.05) | 19.59 | 17.58 | |||||||||
| RP magnitude | 18.22 (0.02) | 18.22 | 16.89 | |||||||||
| Pan g magnitude | 19.80 (0.02) | 19.80 (0.02) | ||||||||||
| Pan r magnitude | 18.94 (0.006) | 18.94 (0.006) | ||||||||||
| Pan i magnitude | 18.57 (0.007) | 18.57 (0.007) | ||||||||||
| Pan z magnitude | 18.42 (0.02) | 18.42 (0.02) | ||||||||||
| Pan y magnitude | 18.36 (0.01) | 18.36 (0.01) | ||||||||||
| E(B-V) | 0.001 | |||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

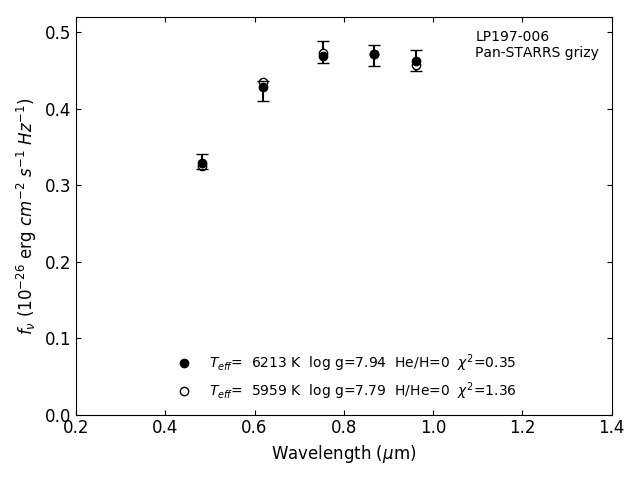

Photometric fit
