NAME CASE 3
All names: 1SWASP J233135.65+410130.6, 23315+4101, FBS B 197, Gaia EDR3 1923682286712356992, WD 2329+40, PM J23315+4101, G 171-2, PLX 5693.02, GEN# +9.80171002, UBV 20226, TIC 333224807, Case 3, Gaia DR3 1923682286712356992, CSI+40-23292, NLTT 57127, WISE J233135.90+410129.6, NAME Case 3, EGGR 160, LSPM J2331+4101W, GCRV 74350, FBS 2329+407, USNO-B1.0 1310-00491807, Gaia DR2 1923682286712356992, WDJ233135.66+410130.68, WD 2329+407, G 190-30, 2MASS J23313564+4101307
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | O'Brien et al. 2024 | McCleery et al. 2020 | MWDD H | Gaia DR2 | Stilism | Limoges et al. 2015 | Gianninas et al. 2011 | Vincent et al. 2024 | Simbad | Gentile Fusillo et al. 2018 | White Dwarf Catalog (McCook & Sion 1999) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 23 31 36.03 (0.02) | 23 31 36.02 (0.03) | 23 31 36.02 (0.03) | 23 31 36.03 | 23 31 35.66 (0.02) | 23 31 36.02 | 23 31 35.30 | |||||||
| Declination | 41 01 29.11 (0.02) | 41 01 29.16 (0.02) | 41 01 29.16 (0.02) | 41 01 29.11 | 41 01 30.68 (0.02) | 41 01 29.16 | 41 01 27.84 | |||||||
| Spectral type | DA | DA | DA | DA | DA | DA | DA3.0 | DA3 | ||||||
| Effective temperature | [K] | 16665.0 (293) | 16370.3 (96) | 15550.0 | 16560.0 (257) | 16640.0 (257) | 16928.0 (87) | |||||||
| log(g) | [cgs] | 7.99 (0.02) | 7.98 (0.009) | 7.93 | 8.02 (0.05) | 8.02 (0.05) | 8.02 (0.005) | |||||||
| Mass | [M☉] | 0.608 (0.01) | 0.573 | 0.63 (0.03) | 0.63 (0.03) | 0.627 (0.004) | ||||||||
| log(Luminosity) | [L☉] | -1.95 | ||||||||||||
| Cooling age | [Gyr] | 0.1560 | ||||||||||||
| log(H/He) | ||||||||||||||
| log(C/He) | ||||||||||||||
| log(Ca/He) | ||||||||||||||
| log(Ca/H) | ||||||||||||||
| log(C/H) | ||||||||||||||
| log(N/H) | ||||||||||||||
| log(O/H) | ||||||||||||||
| log(Na/H) | ||||||||||||||
| log(Mg/H) | ||||||||||||||
| log(Al/H) | ||||||||||||||
| log(Si/H) | ||||||||||||||
| log(P/H) | ||||||||||||||
| log(S/H) | ||||||||||||||
| log(Sc/H) | ||||||||||||||
| log(Ti/H) | ||||||||||||||
| log(Cr/H) | ||||||||||||||
| log(Mn/H) | ||||||||||||||
| log(Fe/H) | ||||||||||||||
| log(Ni/H) | ||||||||||||||
| Parallax | [mas] | 28.02 (0.03) | 28.02 (0.03) | 28.02 (0.04) | 28.02 (0.04) | 29.30 (7) | 28.02 | 28.02 (0.03) | 28.02 (0.04) | 29.30 (7) | ||||
| Distance | [pc] | 35.69 (0.03) | 35.69 (0.04) | 35.69 (0.05) | 35.69 (0.05) | 34.10 (8) | 35.00 | 35.69 | 35.69 (0.03) | 35.69 (0.05) | 34.13 (8) | |||
| Composition | H | H | H | H | ||||||||||
| Proper motion (right ascension) | [mas/yr] | 264.4165608 (0.02) | 264.3262029 (0.06) | 264.417 (0.02) | 264.3262029 | |||||||||
| Proper motion (declination) | [mas/yr] | -98.42171814 (0.02) | -98.46167356 (0.05) | -98.422 (0.02) | -98.46167356 | |||||||||
| Variability | ||||||||||||||
| Magnetic | ||||||||||||||
| Bd | [MG] | |||||||||||||
| Infrared excess (disk) | ||||||||||||||
| Binarity | ||||||||||||||
| B magnitude | 13.85 | |||||||||||||
| V magnitude | ||||||||||||||
| R magnitude | 13.90 | |||||||||||||
| I magnitude | ||||||||||||||
| J magnitude | 14.21 (0.03) | |||||||||||||
| H magnitude | 14.32 (0.06) | |||||||||||||
| K magnitude | 14.25 (0.07) | |||||||||||||
| u magnitude | ||||||||||||||
| g magnitude | ||||||||||||||
| r magnitude | ||||||||||||||
| i magnitude | ||||||||||||||
| z magnitude | ||||||||||||||
| G magnitude | 13.89 (0.0006) | 13.91 | 13.91 | 13.89 | 13.89 (0.003) | 13.91 | ||||||||
| BP magnitude | 13.84 (0.0006) | 13.82 | 13.82 | |||||||||||
| RP magnitude | 14.02 (0.0006) | 14.03 | 14.03 | |||||||||||
| Pan g magnitude | 13.76 (0.005) | |||||||||||||
| Pan r magnitude | 14.07 (0.004) | |||||||||||||
| Pan i magnitude | 14.35 (0.002) | |||||||||||||
| Pan z magnitude | 14.58 (0.002) | |||||||||||||
| Pan y magnitude | 14.73 (0.003) | |||||||||||||
| E(B-V) | 0.002 | |||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

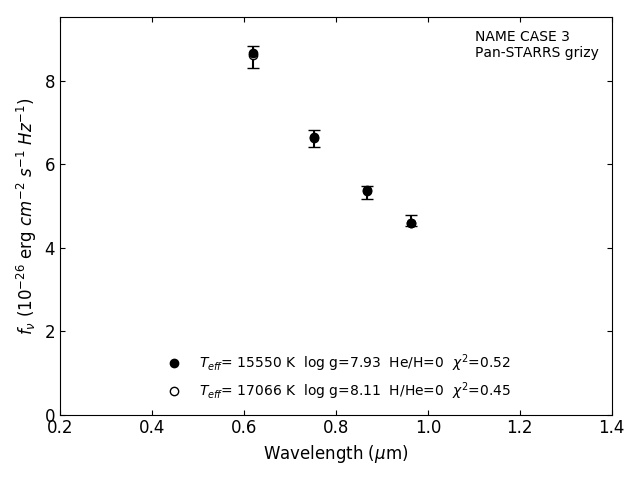

Photometric fit
