NAME H PER1166
All names: UBV 2276, UBV M 30508, WD 0214+568, LAWD 12, WDJ021733.53+570647.35, PLX 462, 1SWASP J021733.49+570647.3, CSI+56-02140, GEN# +2.08690230, TIC 348137708, Gaia DR2 458558784733311232, NAME H PER1166, PLX 462.00, Gaia DR3 458558784733311232, USNO-B1.0 1471-00089417, H PER 1166, [SHM2002] 1039, GSC 03694-02903, WD 0214+56, EGGR 17, ALS 17097, LSPM J0217+5706, GCRV 21673, 2MASS J02173351+5706474, AC2000 1749316, NGC 869 230, Gaia EDR3 458558784733311232
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | O'Brien et al. 2024 | McCleery et al. 2020 | MWDD H | Gaia DR2 | Stilism | Gianninas et al. 2011 | Vincent et al. 2024 | Simbad | Gentile Fusillo et al. 2018 | White Dwarf Catalog (McCook & Sion 1999) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 02 17 33.86 (0.02) | 02 17 33.85 (0.02) | 02 17 33.85 (0.02) | 02 17 33.86 | 02 17 33.53 (0.02) | 02 17 33.85 | 02 17 31.20 | ||||||
| Declination | 57 06 46.97 (0.02) | 57 06 46.98 (0.03) | 57 06 46.98 (0.03) | 57 06 46.97 | 57 06 47.35 (0.02) | 57 06 46.98 | 57 06 51.12 | ||||||
| Spectral type | DA | DA | DA | DA | DA | DA2.3 | DA2 | ||||||
| Effective temperature | [K] | 22261.0 (453) | 21463.6 (293) | 19345.0 | 22080.0 (344) | 23114.0 (179) | |||||||
| log(g) | [cgs] | 8.03 (0.03) | 7.99 (0.02) | 7.89 | 7.98 (0.05) | 8.08 (0.007) | |||||||
| Mass | [M☉] | 0.643 (0.01) | 0.563 | 0.62 (0.03) | 0.675 (0.006) | ||||||||
| log(Luminosity) | [L☉] | ||||||||||||
| Cooling age | [Gyr] | 0.0601 | |||||||||||
| log(H/He) | |||||||||||||
| log(C/He) | |||||||||||||
| log(Ca/He) | |||||||||||||
| log(Ca/H) | |||||||||||||
| log(C/H) | |||||||||||||
| log(N/H) | |||||||||||||
| log(O/H) | |||||||||||||
| log(Na/H) | |||||||||||||
| log(Mg/H) | |||||||||||||
| log(Al/H) | |||||||||||||
| log(Si/H) | |||||||||||||
| log(P/H) | |||||||||||||
| log(S/H) | |||||||||||||
| log(Sc/H) | |||||||||||||
| log(Ti/H) | |||||||||||||
| log(Cr/H) | |||||||||||||
| log(Mn/H) | |||||||||||||
| log(Fe/H) | |||||||||||||
| log(Ni/H) | |||||||||||||
| Parallax | [mas] | 25.16 (0.03) | 25.16 (0.03) | 25.10 (0.04) | 25.10 (0.04) | 25.16 | 25.16 (0.03) | 25.10 (0.04) | 14.80 (4) | ||||
| Distance | [pc] | 39.75 (0.04) | 39.75 (0.05) | 39.84 (0.07) | 39.84 (0.07) | 42.00 | 39.75 | 39.75 (0.04) | 39.84 (0.07) | 67.57 (18) | |||
| Composition | H | H | H | ||||||||||
| Proper motion (right ascension) | [mas/yr] | 171.111227 (0.02) | 171.0432494 (0.07) | 171.111 (0.02) | 171.0432494 | ||||||||
| Proper motion (declination) | [mas/yr] | -23.67144928 (0.03) | -23.68526948 (0.08) | -23.671 (0.03) | -23.68526948 | ||||||||
| Variability | |||||||||||||
| Magnetic | |||||||||||||
| Bd | [MG] | ||||||||||||
| Infrared excess (disk) | |||||||||||||
| Binarity | |||||||||||||
| B magnitude | 13.56 | ||||||||||||
| V magnitude | |||||||||||||
| R magnitude | 14.60 | ||||||||||||
| I magnitude | |||||||||||||
| J magnitude | 14.18 (0.03) | ||||||||||||
| H magnitude | 14.32 (0.05) | ||||||||||||
| K magnitude | 14.20 (0.07) | ||||||||||||
| u magnitude | |||||||||||||
| g magnitude | |||||||||||||
| r magnitude | |||||||||||||
| i magnitude | |||||||||||||
| z magnitude | |||||||||||||
| G magnitude | 13.64 (0.0008) | 13.66 | 13.66 | 13.64 | 13.64 (0.003) | 13.66 | |||||||
| BP magnitude | 13.54 (0.0008) | 13.50 | 13.50 | ||||||||||
| RP magnitude | 13.85 (0.0007) | 13.84 | 13.84 | ||||||||||
| Pan g magnitude | 13.52 (0.001) | ||||||||||||
| Pan r magnitude | 13.88 (0.005) | ||||||||||||
| Pan i magnitude | 14.20 (0.008) | ||||||||||||
| Pan z magnitude | 14.45 (0.0008) | ||||||||||||
| Pan y magnitude | 14.60 (0.004) | ||||||||||||
| E(B-V) | 0.001 | ||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

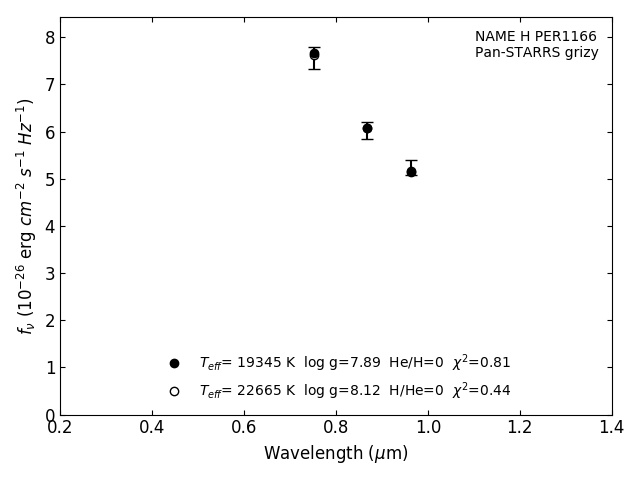

Photometric fit
