PB 6677
All names: SDSS J020747.74+070252.3, Gaia EDR3 2521211910889067648, Gaia DR3 2521211910889067648, WD 0205+068, GALEX J020747.7+070252, SDSS J020747.74+070252.2, PB 6677, Gaia DR2 2521211910889067648
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | sdss-wdms.org (29/04/2016) | Simbad | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 02 07 47.73 (0.2) | 02 07 47.74 | 02 07 47.73 (0.3) | 02 07 47.74 | 02 07 47.75 (0.2) | 02 07 47.02 | 02 07 47.74 | |||||
| Declination | 07 02 52.00 (0.2) | 07 02 52.24 | 07 02 52.01 (0.2) | 07 02 52.30 | 07 02 52.36 (0.2) | 07 02 49.56 | 07 02 52.30 | |||||
| Spectral type | DA+M | DA+M | DA+M | DA2.7 M | DA+M | DA | ||||||
| Effective temperature | [K] | 11840.0 | 18756.0 (369) | 19288.0 (229) | ||||||||
| log(g) | [cgs] | 6.78 | 7.38 (0.08) | 7.43 (0.04) | ||||||||
| Mass | [M☉] | 0.193 | 0.35 (0.02) | |||||||||
| log(Luminosity) | [L☉] | |||||||||||
| Cooling age | [Gyr] | |||||||||||
| log(H/He) | ||||||||||||
| log(C/He) | ||||||||||||
| log(Ca/He) | ||||||||||||
| log(Ca/H) | ||||||||||||
| log(C/H) | ||||||||||||
| log(N/H) | ||||||||||||
| log(O/H) | ||||||||||||
| log(Na/H) | ||||||||||||
| log(Mg/H) | ||||||||||||
| log(Al/H) | ||||||||||||
| log(Si/H) | ||||||||||||
| log(P/H) | ||||||||||||
| log(S/H) | ||||||||||||
| log(Sc/H) | ||||||||||||
| log(Ti/H) | ||||||||||||
| log(Cr/H) | ||||||||||||
| log(Mn/H) | ||||||||||||
| log(Fe/H) | ||||||||||||
| log(Ni/H) | ||||||||||||
| Parallax | [mas] | 1.59 (0.2) | 1.65 (0.3) | 1.59 (0.2) | ||||||||
| Distance | [pc] | 628.31 (90) | 604.65 (123) | 491.00 (50) | 628.30 (90) | |||||||
| Composition | H | |||||||||||
| Proper motion (right ascension) | [mas/yr] | -19.91394386 (0.2) | -19.37093826 (0.5) | -19.914 (0.2) | ||||||||
| Proper motion (declination) | [mas/yr] | -22.37563707 (0.2) | -22.67114027 (0.4) | -22.376 (0.2) | ||||||||
| Variability | ||||||||||||
| Magnetic | ||||||||||||
| Bd | [MG] | |||||||||||
| Infrared excess (disk) | ||||||||||||
| Binarity | WDMS | yes | WDMS | |||||||||
| B magnitude | 18.50 | |||||||||||
| V magnitude | ||||||||||||
| R magnitude | ||||||||||||
| I magnitude | ||||||||||||
| J magnitude | 18.34 (0.06) | |||||||||||
| H magnitude | 18.50 (0.1) | |||||||||||
| K magnitude | 17.90 (0.2) | |||||||||||
| u magnitude | 18.94 (0.02) | 19.26 | 18.94 (0.02) | 19.25 | 18.95 (0.03) | |||||||
| g magnitude | 18.73 (0.008) | 19.05 | 18.73 (0.008) | 19.04 | 18.76 (0.02) | |||||||
| r magnitude | 19.03 (0.01) | 19.35 | 19.03 (0.01) | 19.35 | 19.04 (0.03) | |||||||
| i magnitude | 19.23 (0.02) | 19.58 | 19.23 (0.02) | 19.58 | 19.25 (0.02) | |||||||
| z magnitude | 19.11 (0.05) | 19.44 | 19.11 (0.05) | 19.44 | 19.16 (0.06) | |||||||
| G magnitude | 18.86 (0.02) | 18.90 | 18.86 (0.004) | |||||||||
| BP magnitude | 18.89 (0.02) | 18.83 | ||||||||||
| RP magnitude | 18.92 (0.04) | 18.97 | ||||||||||
| Pan g magnitude | 18.76 (0.007) | |||||||||||
| Pan r magnitude | 19.02 (0.009) | |||||||||||
| Pan i magnitude | 19.23 (0.02) | |||||||||||
| Pan z magnitude | 19.27 (0.01) | |||||||||||
| Pan y magnitude | 19.21 (0.04) | |||||||||||
| E(B-V) | 0.051 | |||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

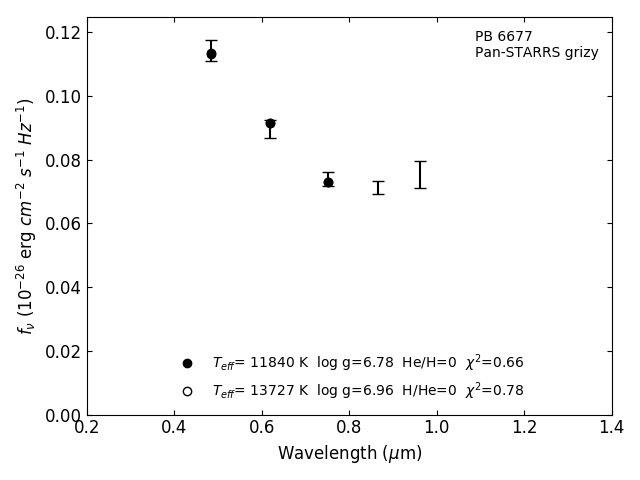

Photometric fit
