SDSS J160332.91+320300.1
All names: SDSS J160332.91+320300.1, Gaia DR3 1322981147009543296, GALEX J160332.9+320258, WD 1601+321, Gaia EDR3 1322981147009543296, Gaia DR2 1322981147009543296, SDSS J160332.91+320300.2
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD HE | Gaia DR2 | Stilism | Simbad | Eisenstein et al. 2006 | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 16 03 32.92 (0.2) | 16 03 32.91 | 16 03 32.92 (0.3) | 16 03 32.92 (0.2) | 16 03 32.91 | 16 03 32.23 | 16 03 32.91 | |||||
| Declination | 32 03 00.29 (0.3) | 32 03 00.16 | 32 03 00.29 (0.5) | 32 03 00.19 (0.3) | 32 03 00.19 | 32 02 54.60 | 32 03 00.19 | |||||
| Spectral type | DB+M | DB+M | DB:_or_HeSDB | DB: | DB+M | DB | ||||||
| Effective temperature | [K] | 15527.0 | 15721.0 (476) | 14942.0 (523) | ||||||||
| log(g) | [cgs] | 7.84 | 8.58 (0.3) | 8.80 (0.4) | ||||||||
| Mass | [M☉] | 0.503 | ||||||||||
| log(Luminosity) | [L☉] | |||||||||||
| Cooling age | [Gyr] | 0.1373 | ||||||||||
| log(H/He) | ||||||||||||
| log(C/He) | ||||||||||||
| log(Ca/He) | ||||||||||||
| log(Ca/H) | ||||||||||||
| log(N/He) | ||||||||||||
| log(O/He) | ||||||||||||
| log(Na/He) | ||||||||||||
| log(Mg/He) | ||||||||||||
| log(Al/He) | ||||||||||||
| log(Si/He) | ||||||||||||
| log(P/He) | ||||||||||||
| log(S/He) | ||||||||||||
| log(Cl/He) | ||||||||||||
| log(Sc/He) | ||||||||||||
| log(Ti/He) | ||||||||||||
| log(V/He) | ||||||||||||
| log(Cr/He) | ||||||||||||
| log(Mn/He) | ||||||||||||
| log(Fe/He) | ||||||||||||
| log(Co/He) | ||||||||||||
| log(Ni/He) | ||||||||||||
| log(Cu/He) | ||||||||||||
| log(Zn/He) | ||||||||||||
| log(Ga/He) | ||||||||||||
| log(Ge/He) | ||||||||||||
| log(Sr/He) | ||||||||||||
| Parallax | [mas] | 1.85 (0.4) | 1.63 (0.5) | 1.85 (0.4) | ||||||||
| Distance | [pc] | 540.27 (106) | 614.02 (187) | 540.28 (106) | ||||||||
| Composition | He | |||||||||||
| Proper motion (right ascension) | [mas/yr] | 2.399752057 (0.3) | 1.664577725 (0.8) | 2.4 (0.3) | -1.1 | |||||||
| Proper motion (declination) | [mas/yr] | 6.689529641 (0.4) | 6.349010265 (0.9) | 6.69 (0.4) | 7.5 | |||||||
| Variability | ||||||||||||
| Magnetic | ||||||||||||
| Bd | [MG] | |||||||||||
| Infrared excess (disk) | ||||||||||||
| Binarity | WDMS | |||||||||||
| B magnitude | ||||||||||||
| V magnitude | ||||||||||||
| R magnitude | ||||||||||||
| I magnitude | ||||||||||||
| J magnitude | ||||||||||||
| H magnitude | ||||||||||||
| K magnitude | ||||||||||||
| u magnitude | 19.75 (0.03) | 19.75 (0.03) | 19.72 (0.03) | 19.71 | 19.72 (0.03) | |||||||
| g magnitude | 19.82 (0.01) | 19.83 (0.01) | 19.83 (0.02) | 19.82 | 19.82 (0.02) | |||||||
| r magnitude | 20.07 (0.02) | 20.06 (0.02) | 20.05 (0.02) | 20.05 | 20.06 (0.02) | |||||||
| i magnitude | 20.32 (0.03) | 20.32 (0.04) | 20.33 (0.04) | 20.32 | 20.32 (0.04) | |||||||
| z magnitude | 20.70 (0.2) | 20.69 (0.1) | 20.66 (0.1) | 20.65 | 20.66 (0.1) | |||||||
| G magnitude | 19.93 (0.05) | 19.99 | 19.93 (0.005) | |||||||||
| BP magnitude | 19.96 (0.05) | 19.86 | ||||||||||
| RP magnitude | 20.11 (0.08) | 19.94 | ||||||||||
| Pan g magnitude | 19.83 (0.02) | |||||||||||
| Pan r magnitude | 20.10 (0.005) | |||||||||||
| Pan i magnitude | 20.32 (0.01) | |||||||||||
| Pan z magnitude | 20.39 (0.03) | |||||||||||
| Pan y magnitude | ||||||||||||
| E(B-V) | 0.024 | |||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

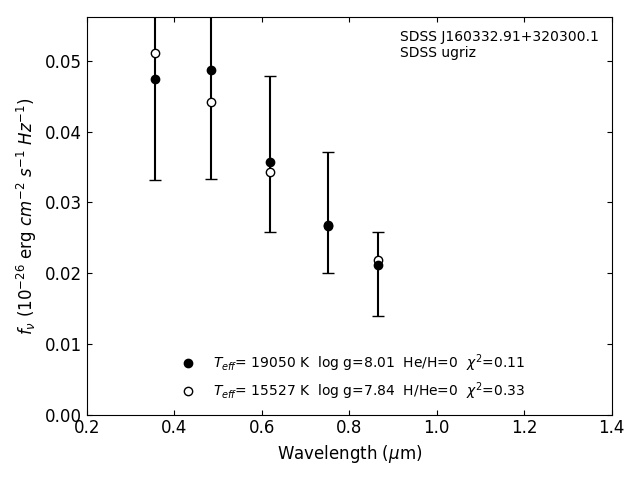

Photometric fit
