SDSS J171315.59+311926.8
All names: Gaia EDR3 1333401974620416000, SDSS J171315.60+311927.0, SDSS J171315.58+311926.9, Gaia DR3 1333401974620416000, Gaia DR2 1333401974620416000, SDSS J171315.59+311926.8, WD 1711+313
| Parameter | Unit | Gaia EDR3 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Simbad | Eisenstein et al. 2006 | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 17 13 15.58 (0.4) | 17 13 15.59 | 17 13 15.58 (0.5) | 17 13 15.59 (0.4) | 17 13 15.59 | 17 13 14.95 | 17 13 15.60 | ||||
| Declination | 31 19 26.98 (0.4) | 31 19 26.97 | 31 19 26.98 (0.5) | 31 19 26.99 (0.4) | 31 19 26.89 | 31 19 21.00 | 31 19 26.98 | ||||
| Spectral type | DA | DA | DA_auto | DA | DA | DA | |||||
| Effective temperature | [K] | 16781.0 | 15470.0 (655) | 15493.0 (738) | |||||||
| log(g) | [cgs] | 8.82 | 7.84 (0.2) | 7.96 (0.2) | |||||||
| Mass | [M☉] | 1.118 | |||||||||
| log(Luminosity) | [L☉] | ||||||||||
| Cooling age | [Gyr] | 0.5823 | |||||||||
| log(H/He) | |||||||||||
| log(C/He) | |||||||||||
| log(Ca/He) | |||||||||||
| log(Ca/H) | |||||||||||
| log(C/H) | |||||||||||
| log(N/H) | |||||||||||
| log(O/H) | |||||||||||
| log(Na/H) | |||||||||||
| log(Mg/H) | |||||||||||
| log(Al/H) | |||||||||||
| log(Si/H) | |||||||||||
| log(P/H) | |||||||||||
| log(S/H) | |||||||||||
| log(Sc/H) | |||||||||||
| log(Ti/H) | |||||||||||
| log(Cr/H) | |||||||||||
| log(Mn/H) | |||||||||||
| log(Fe/H) | |||||||||||
| log(Ni/H) | |||||||||||
| Parallax | [mas] | 2.42 (0.5) | 2.63 (0.6) | 2.42 (0.5) | |||||||
| Distance | [pc] | 413.58 (85) | 380.64 (85) | 413.58 (85) | |||||||
| Composition | H | ||||||||||
| Proper motion (right ascension) | [mas/yr] | -4.984486604 (0.6) | -4.208634321 (1) | -4.984 (0.6) | 5.9 | ||||||
| Proper motion (declination) | [mas/yr] | -0.249584016 (0.6) | 1.450649432 (1) | -0.25 (0.6) | 4.3 | ||||||
| Variability | |||||||||||
| Magnetic | |||||||||||
| Bd | [MG] | ||||||||||
| Infrared excess (disk) | |||||||||||
| Binarity | |||||||||||
| B magnitude | |||||||||||
| V magnitude | |||||||||||
| R magnitude | |||||||||||
| I magnitude | |||||||||||
| J magnitude | |||||||||||
| H magnitude | |||||||||||
| K magnitude | |||||||||||
| u magnitude | 20.63 (0.06) | 20.64 (0.06) | 20.62 (0.06) | 20.62 | 20.62 (0.06) | ||||||
| g magnitude | 20.27 (0.02) | 20.27 (0.02) | 20.28 (0.02) | 20.28 | 20.28 (0.02) | ||||||
| r magnitude | 20.55 (0.03) | 20.55 (0.03) | 20.57 (0.03) | 20.57 | 20.57 (0.03) | ||||||
| i magnitude | 20.99 (0.06) | 20.99 (0.06) | 21.00 (0.06) | 20.99 | 21.00 (0.06) | ||||||
| z magnitude | 20.93 (0.2) | 20.93 (0.2) | 20.87 (0.2) | 20.86 | 20.88 (0.2) | ||||||
| G magnitude | 20.41 (0.07) | 20.49 | 20.41 (0.007) | ||||||||
| BP magnitude | 20.39 (0.07) | 20.33 | |||||||||
| RP magnitude | 20.42 (0.1) | 20.46 | |||||||||
| Pan g magnitude | |||||||||||
| Pan r magnitude | |||||||||||
| Pan i magnitude | |||||||||||
| Pan z magnitude | |||||||||||
| Pan y magnitude | |||||||||||
| E(B-V) | 0.024 | ||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

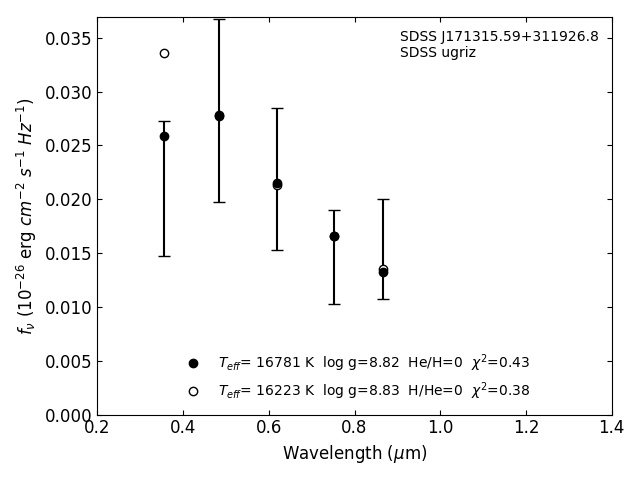

Photometric fit
