SDSS J171713.10+574634.6
All names: GALEX J171713.3+574633, SDSS J171713.11+574634.6, Gaia DR2 1433108712683369088, Gaia DR3 1433108712683369088, WD 1716+578, Gaia EDR3 1433108712683369088, SDSS J171713.10+574634.6
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Vincent et al. 2024 | Simbad | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Kleinman et al. 2004 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 17 17 13.17 (0.1) | 17 17 13.11 | 17 17 13.17 (0.2) | 17 17 13.17 | 17 17 13.11 (0.1) | 17 17 12.58 | 17 17 13.11 | 17 17 13.11 | |||||
| Declination | 57 46 33.61 (0.1) | 57 46 34.63 | 57 46 33.64 (0.2) | 57 46 33.61 | 57 46 34.62 (0.1) | 57 46 28.20 | 57 46 34.61 | 57 46 34.61 | |||||
| Spectral type | DA7 | DA | DA7 | DA6.8 | DA | DA | |||||||
| Effective temperature | [K] | 6554.0 | 6668.0 (139) | 6647.0 (61) | 7425.0 (55) | ||||||||
| log(g) | [cgs] | 7.57 | 7.62 (0.05) | 7.89 (0.2) | 8.96 (0.05) | ||||||||
| Mass | [M☉] | 0.369 | 0.392 (0.03) | 0.533 (0.08) | |||||||||
| log(Luminosity) | [L☉] | ||||||||||||
| Cooling age | [Gyr] | 1.0590 | |||||||||||
| log(H/He) | |||||||||||||
| log(C/He) | |||||||||||||
| log(Ca/He) | |||||||||||||
| log(Ca/H) | |||||||||||||
| log(C/H) | |||||||||||||
| log(N/H) | |||||||||||||
| log(O/H) | |||||||||||||
| log(Na/H) | |||||||||||||
| log(Mg/H) | |||||||||||||
| log(Al/H) | |||||||||||||
| log(Si/H) | |||||||||||||
| log(P/H) | |||||||||||||
| log(S/H) | |||||||||||||
| log(Sc/H) | |||||||||||||
| log(Ti/H) | |||||||||||||
| log(Cr/H) | |||||||||||||
| log(Mn/H) | |||||||||||||
| log(Fe/H) | |||||||||||||
| log(Ni/H) | |||||||||||||
| Parallax | [mas] | 8.08 (0.1) | 7.99 (0.2) | 8.08 | 8.08 (0.1) | ||||||||
| Distance | [pc] | 123.76 (2) | 125.14 (3) | 123.76 | 123.76 (2) | ||||||||
| Composition | H | ||||||||||||
| Proper motion (right ascension) | [mas/yr] | 31.31380475 (0.2) | 30.87695222 (0.3) | 31.314 (0.2) | 33.0 | ||||||||
| Proper motion (declination) | [mas/yr] | -63.47165286 (0.2) | -62.89767049 (0.4) | -63.472 (0.2) | -33.0 | ||||||||
| Variability | |||||||||||||
| Magnetic | |||||||||||||
| Bd | [MG] | ||||||||||||
| Infrared excess (disk) | |||||||||||||
| Binarity | |||||||||||||
| B magnitude | |||||||||||||
| V magnitude | |||||||||||||
| R magnitude | |||||||||||||
| I magnitude | |||||||||||||
| J magnitude | |||||||||||||
| H magnitude | |||||||||||||
| K magnitude | |||||||||||||
| u magnitude | 19.47 (0.03) | 19.47 (0.03) | 19.48 | 19.48 (0.04) | 19.48 (0.03) | ||||||||
| g magnitude | 18.85 (0.008) | 18.85 (0.008) | 18.86 | 18.85 (0.02) | 18.86 (0.02) | ||||||||
| r magnitude | 18.61 (0.009) | 18.61 (0.009) | 18.60 | 18.60 (0.01) | 18.60 (0.01) | ||||||||
| i magnitude | 18.54 (0.01) | 18.54 (0.01) | 18.55 | 18.55 (0.02) | 18.55 (0.02) | ||||||||
| z magnitude | 18.53 (0.04) | 18.53 (0.04) | 18.54 | 18.53 (0.04) | 18.54 (0.04) | ||||||||
| G magnitude | 18.62 (0.03) | 18.63 | 18.62 | 18.62 (0.003) | |||||||||
| BP magnitude | 18.81 (0.03) | 18.84 | |||||||||||
| RP magnitude | 18.22 (0.02) | 18.22 | |||||||||||
| Pan g magnitude | 18.84 (0.005) | ||||||||||||
| Pan r magnitude | 18.62 (0.005) | ||||||||||||
| Pan i magnitude | 18.55 (0.006) | ||||||||||||
| Pan z magnitude | 18.57 (0.007) | ||||||||||||
| Pan y magnitude | 18.60 (0.03) | ||||||||||||
| E(B-V) | 0.017 | ||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

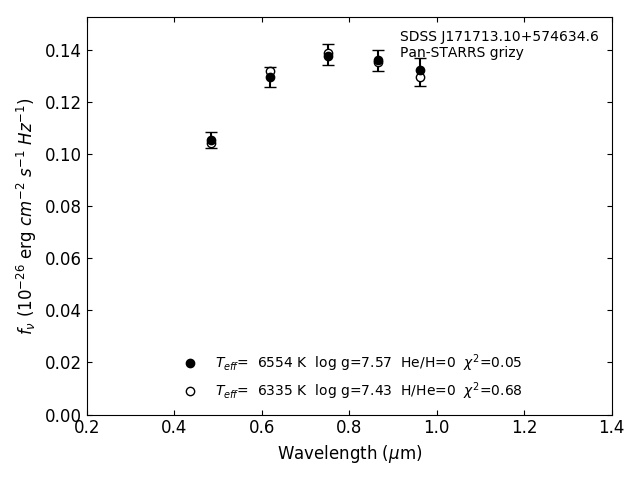

Photometric fit
