Ton 626
All names: USNO-B1.0 1191-00202493, Gaia DR3 4011093842048361216, SDSS J123747.53+290822.2, GALEX J123747.5+290822, Gaia DR2 4011093842048361216, KUV 12353+2925, WD 1235+294, Gaia EDR3 4011093842048361216, SDSS J123747.53+290822.1, CSO 154, SDSS J123747.56+290821.9, GSC2.3 N5AI004031, WD 1235+321, LAMOST J123747.53+290822.1, Ton 626
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Gianninas et al. 2011 | Vincent et al. 2024 | Simbad | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 12 37 47.58 (0.07) | 12 37 47.53 | 12 37 47.58 (0.1) | 12 37 47.58 | 12 37 47.52 (0.07) | 12 37 47.81 | 12 37 47.53 | ||||||
| Declination | 29 08 21.84 (0.06) | 29 08 22.12 | 29 08 21.85 (0.08) | 29 08 21.84 | 29 08 22.17 (0.06) | 29 08 18.60 | 29 08 22.19 | ||||||
| Spectral type | DA | DA | DA | DA2.6 | DA | DA | DA | ||||||
| Effective temperature | [K] | 17266.0 | 19400.0 (358) | 18852.0 (616) | 19520.0 (129) | ||||||||
| log(g) | [cgs] | 7.74 | 7.95 (0.06) | 7.85 (0.04) | 7.91 (0.02) | ||||||||
| Mass | [M☉] | 0.48 | 0.59 (0.03) | 0.54 (0.03) | 0.577 (0.009) | ||||||||
| log(Luminosity) | [L☉] | ||||||||||||
| Cooling age | [Gyr] | 0.0753 | |||||||||||
| log(H/He) | |||||||||||||
| log(C/He) | |||||||||||||
| log(Ca/He) | |||||||||||||
| log(Ca/H) | |||||||||||||
| log(C/H) | |||||||||||||
| log(N/H) | |||||||||||||
| log(O/H) | |||||||||||||
| log(Na/H) | |||||||||||||
| log(Mg/H) | |||||||||||||
| log(Al/H) | |||||||||||||
| log(Si/H) | |||||||||||||
| log(P/H) | |||||||||||||
| log(S/H) | |||||||||||||
| log(Sc/H) | |||||||||||||
| log(Ti/H) | |||||||||||||
| log(Cr/H) | |||||||||||||
| log(Mn/H) | |||||||||||||
| log(Fe/H) | |||||||||||||
| log(Ni/H) | |||||||||||||
| Parallax | [mas] | 4.97 (0.1) | 4.92 (0.2) | 4.97 | 4.97 (0.1) | ||||||||
| Distance | [pc] | 201.36 (4) | 203.08 (7) | 141.00 | 201.36 | 201.36 (4) | |||||||
| Composition | H | H | |||||||||||
| Proper motion (right ascension) | [mas/yr] | 47.76018765 (0.08) | 47.62467818 (0.2) | 47.76 (0.08) | |||||||||
| Proper motion (declination) | [mas/yr] | -20.81277751 (0.1) | -20.81185753 (0.1) | -20.813 (0.1) | |||||||||
| Variability | |||||||||||||
| Magnetic | |||||||||||||
| Bd | [MG] | ||||||||||||
| Infrared excess (disk) | |||||||||||||
| Binarity | |||||||||||||
| B magnitude | 17.40 | ||||||||||||
| V magnitude | 17.29 | ||||||||||||
| R magnitude | 17.40 | ||||||||||||
| I magnitude | 17.39 (0.4) | ||||||||||||
| J magnitude | |||||||||||||
| H magnitude | |||||||||||||
| K magnitude | |||||||||||||
| u magnitude | 17.08 (0.008) | 17.09 (0.008) | 17.13 (0.02) | ||||||||||
| g magnitude | 17.00 (0.004) | 17.00 (0.004) | 17.05 (0.03) | ||||||||||
| r magnitude | 17.38 (0.005) | 17.38 (0.005) | 17.37 (0.02) | ||||||||||
| i magnitude | 17.67 (0.007) | 17.68 (0.007) | 17.69 (0.01) | ||||||||||
| z magnitude | 17.97 (0.02) | 17.97 (0.02) | 17.98 (0.03) | ||||||||||
| G magnitude | 17.20 (0.006) | 17.22 | 17.20 | 17.20 (0.003) | |||||||||
| BP magnitude | 17.14 (0.006) | 17.11 | |||||||||||
| RP magnitude | 17.38 (0.01) | 17.38 | |||||||||||
| Pan g magnitude | 17.06 (0.005) | ||||||||||||
| Pan r magnitude | 17.38 (0.006) | ||||||||||||
| Pan i magnitude | 17.68 (0.005) | ||||||||||||
| Pan z magnitude | 17.93 (0.005) | ||||||||||||
| Pan y magnitude | 18.10 (0.01) | ||||||||||||
| E(B-V) | 0.009 | ||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

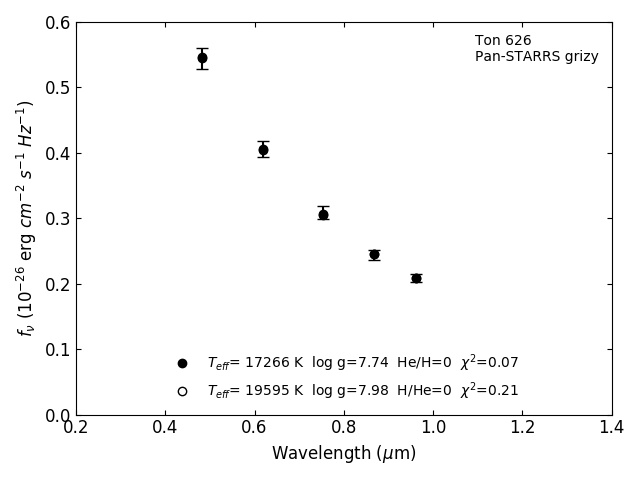

Photometric fit
