Ton S 16
All names: Ton 16, LAMOST J093204.04+285044.3, WD 0929+290, Gaia EDR3 696155447825938304, UBV M 43100, Gaia DR2 696155447825938304, GEN# +6.10070016, GALEX J093204.0+285044, TIC 172530444, Ton S 16, SDSS J093204.04+285044.4, Gaia DR3 696155447825938304, CHSS 653, CBS 12, 2MASS J09320407+2850448
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Guo et al. 2015 | Gianninas et al. 2011 | Vincent et al. 2024 | Simbad | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 09 32 04.02 (0.08) | 09 32 04.04 | 09 32 04.02 (0.1) | 09 32 04.02 | 09 32 04.05 (0.08) | 09 32 04.18 | 09 32 04.04 | |||||||
| Declination | 28 50 43.93 (0.06) | 28 50 44.44 | 28 50 43.96 (0.1) | 28 50 43.93 | 28 50 44.61 (0.06) | 28 50 55.32 | 28 50 44.44 | |||||||
| Spectral type | DA | DA | DA | DA | DA3.6 | DA | DA | DA | ||||||
| Effective temperature | [K] | 13308.0 | 13634.0 (358) | 13880.0 (376) | 14447.0 (140) | 13426.0 (147) | ||||||||
| log(g) | [cgs] | 7.92 | 7.93 (0.04) | 8.01 (0.05) | 8.00 (0.01) | 7.92 (0.02) | ||||||||
| Mass | [M☉] | 0.561 | 0.57 (0.02) | 0.61 (0.03) | 0.612 (0.01) | 0.567 (0.01) | ||||||||
| log(Luminosity) | [L☉] | |||||||||||||
| Cooling age | [Gyr] | 0.2500 | ||||||||||||
| log(H/He) | ||||||||||||||
| log(C/He) | ||||||||||||||
| log(Ca/He) | ||||||||||||||
| log(Ca/H) | ||||||||||||||
| log(C/H) | ||||||||||||||
| log(N/H) | ||||||||||||||
| log(O/H) | ||||||||||||||
| log(Na/H) | ||||||||||||||
| log(Mg/H) | ||||||||||||||
| log(Al/H) | ||||||||||||||
| log(Si/H) | ||||||||||||||
| log(P/H) | ||||||||||||||
| log(S/H) | ||||||||||||||
| log(Sc/H) | ||||||||||||||
| log(Ti/H) | ||||||||||||||
| log(Cr/H) | ||||||||||||||
| log(Mn/H) | ||||||||||||||
| log(Fe/H) | ||||||||||||||
| log(Ni/H) | ||||||||||||||
| Parallax | [mas] | 9.61 (0.08) | 9.66 (0.1) | 9.61 | 9.61 (0.08) | |||||||||
| Distance | [pc] | 104.02 (0.8) | 103.57 (1) | 130.00 | 104.02 | 104.02 (0.9) | ||||||||
| Composition | H | H | ||||||||||||
| Proper motion (right ascension) | [mas/yr] | -26.3396414 (0.08) | -26.67257518 (0.3) | -26.34 (0.09) | ||||||||||
| Proper motion (declination) | [mas/yr] | -42.03061865 (0.07) | -41.96570109 (0.3) | -42.031 (0.07) | ||||||||||
| Variability | ||||||||||||||
| Magnetic | ||||||||||||||
| Bd | [MG] | |||||||||||||
| Infrared excess (disk) | ||||||||||||||
| Binarity | ||||||||||||||
| B magnitude | 16.61 | |||||||||||||
| V magnitude | 16.51 | |||||||||||||
| R magnitude | ||||||||||||||
| I magnitude | ||||||||||||||
| J magnitude | 16.43 (0.1) | |||||||||||||
| H magnitude | ||||||||||||||
| K magnitude | ||||||||||||||
| u magnitude | 16.70 (0.007) | 16.71 (0.007) | 16.71 (0.02) | |||||||||||
| g magnitude | 16.33 (0.004) | 16.33 (0.004) | 16.35 (0.02) | |||||||||||
| r magnitude | 16.59 (0.004) | 16.60 (0.004) | 16.60 (0.01) | |||||||||||
| i magnitude | 16.85 (0.005) | 16.85 (0.005) | 16.85 (0.02) | |||||||||||
| z magnitude | 17.11 (0.01) | 17.11 (0.01) | 17.10 (0.02) | |||||||||||
| G magnitude | 16.48 (0.003) | 16.50 | 16.48 | 16.48 (0.003) | ||||||||||
| BP magnitude | 16.46 (0.003) | 16.45 | ||||||||||||
| RP magnitude | 16.56 (0.004) | 16.56 | ||||||||||||
| Pan g magnitude | 16.38 (0.01) | |||||||||||||
| Pan r magnitude | 16.62 (0.005) | |||||||||||||
| Pan i magnitude | 16.87 (0.005) | |||||||||||||
| Pan z magnitude | 17.10 (0.006) | |||||||||||||
| Pan y magnitude | 17.23 (0.01) | |||||||||||||
| E(B-V) | 0.004 | |||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

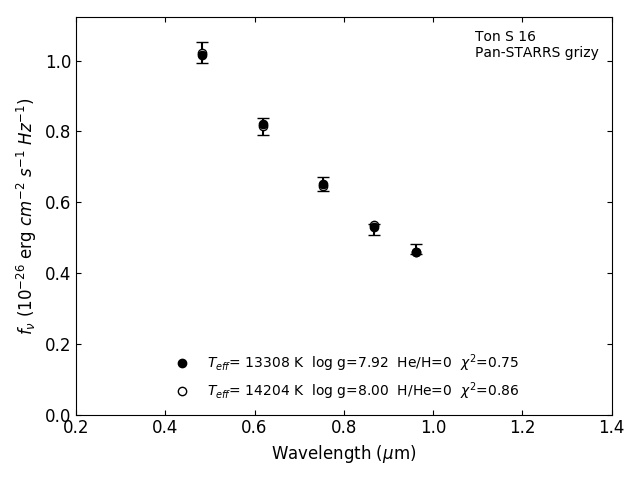

Photometric fit
