USNO-B1.0 0967-00246601
All names: Gaia DR3 3718352444565698432, HS 1334+0701, GALEX J133633.6+064626, SDSS J133633.68+064626.6, TIC 379057421, 2MASS J13363367+0646267, WD 1334+070, SDSS J133633.69+064626.4, LAMOST J133633.66+064626.2, Gaia EDR3 3718352444565698432, USNO-B1.0 0967-00246601, Gaia DR2 3718352444565698432
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | MWDD H | Gaia DR2 | Stilism | Guo et al. 2015 | Koester et al. 2009 | Vincent et al. 2024 | Simbad | White Dwarf Catalog (McCook & Sion 1999) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 13 36 33.72 (0.03) | 13 36 33.72 (0.05) | 13 36 33.72 | 13 36 33.68 (0.03) | 13 36 33.50 | ||||||
| Declination | 06 46 26.08 (0.02) | 06 46 26.10 (0.03) | 06 46 26.08 | 06 46 26.75 (0.02) | 06 46 19.20 | ||||||
| Spectral type | DA3.0 | DA | DA | DA | DA3.0 | ||||||
| Effective temperature | [K] | 11775.0 | 16891.0 (43) | 14600.0 (122) | |||||||
| log(g) | [cgs] | 6.95 | 7.27 (0.009) | 7.22 (0.008) | |||||||
| Mass | [M☉] | 0.22 | 0.289 (0.003) | ||||||||
| log(Luminosity) | [L☉] | ||||||||||
| Cooling age | [Gyr] | ||||||||||
| log(H/He) | |||||||||||
| log(C/He) | |||||||||||
| log(Ca/He) | |||||||||||
| log(Ca/H) | |||||||||||
| log(C/H) | |||||||||||
| log(N/H) | |||||||||||
| log(O/H) | |||||||||||
| log(Na/H) | |||||||||||
| log(Mg/H) | |||||||||||
| log(Al/H) | |||||||||||
| log(Si/H) | |||||||||||
| log(P/H) | |||||||||||
| log(S/H) | |||||||||||
| log(Sc/H) | |||||||||||
| log(Ti/H) | |||||||||||
| log(Cr/H) | |||||||||||
| log(Mn/H) | |||||||||||
| log(Fe/H) | |||||||||||
| log(Ni/H) | |||||||||||
| Parallax | [mas] | 9.45 (0.04) | 9.35 (0.05) | 9.45 | 9.45 (0.04) | ||||||
| Distance | [pc] | 105.82 (0.5) | 106.99 (0.6) | 105.82 | 105.82 (0.5) | ||||||
| Composition | H | ||||||||||
| Proper motion (right ascension) | [mas/yr] | 35.33666797 (0.04) | 35.351293 (0.09) | 35.337 (0.04) | |||||||
| Proper motion (declination) | [mas/yr] | -41.65868063 (0.02) | -41.53001379 (0.07) | -41.659 (0.02) | |||||||
| Variability | |||||||||||
| Magnetic | |||||||||||
| Bd | [MG] | ||||||||||
| Infrared excess (disk) | |||||||||||
| Binarity | yes | ||||||||||
| B magnitude | 15.00 | 15.10 | |||||||||
| V magnitude | |||||||||||
| R magnitude | 15.60 | ||||||||||
| I magnitude | |||||||||||
| J magnitude | 15.53 (0.007) | ||||||||||
| H magnitude | 15.53 (0.01) | ||||||||||
| K magnitude | 15.62 (0.02) | ||||||||||
| u magnitude | 15.58 (0.005) | ||||||||||
| g magnitude | 15.27 (0.004) | ||||||||||
| r magnitude | 15.53 (0.004) | ||||||||||
| i magnitude | 15.75 (0.004) | ||||||||||
| z magnitude | 15.97 (0.007) | ||||||||||
| G magnitude | 15.40 (0.002) | 15.42 | 15.40 | 15.40 (0.003) | |||||||
| BP magnitude | 15.37 (0.002) | 15.36 | |||||||||
| RP magnitude | 15.45 (0.002) | 15.46 | |||||||||
| Pan g magnitude | 15.29 (0.002) | ||||||||||
| Pan r magnitude | 15.54 (0.005) | ||||||||||
| Pan i magnitude | 15.78 (0.003) | ||||||||||
| Pan z magnitude | 15.96 (0.005) | ||||||||||
| Pan y magnitude | 16.09 (0.007) | ||||||||||
| E(B-V) | 0.007 | ||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

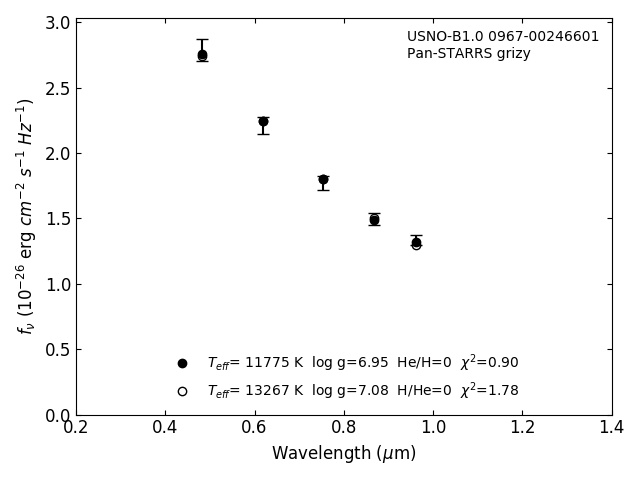

Photometric fit
