WD 0940+571
All names: Gaia DR3 1025290817625791616, SDSS J094333.02+565411.9, Gaia DR2 1025290817625791616, Gaia EDR3 1025290817625791616, SDSS J094333.01+565411.9, SDSS J094333.02+565412.0, WD 0940+571, GALEX J094332.9+565412, SDSS J094333.02+565411.8
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Simbad | Eisenstein et al. 2006 | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Kleinman et al. 2004 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 09 43 33.01 (0.2) | 09 43 33.02 | 09 43 33.01 (0.3) | 09 43 33.03 (0.2) | 09 43 33.01 | 09 43 33.12 | 09 43 33.02 | 09 43 33.02 | |||||
| Declination | 56 54 11.57 (0.2) | 56 54 11.92 | 56 54 11.58 (0.3) | 56 54 11.87 (0.2) | 56 54 11.92 | 56 54 08.64 | 56 54 11.96 | 56 54 11.95 | |||||
| Spectral type | DA | DA | DA | DA2.2 | DA | DA | |||||||
| Effective temperature | [K] | 17859.0 | 21724.0 (562) | 22480.0 (602) | 22450.0 (570) | ||||||||
| log(g) | [cgs] | 7.50 | 7.67 (0.1) | 7.72 (0.1) | 7.74 (0.1) | ||||||||
| Mass | [M☉] | 0.384 | 0.5 (0.04) | ||||||||||
| log(Luminosity) | [L☉] | ||||||||||||
| Cooling age | [Gyr] | 0.0530 | |||||||||||
| log(H/He) | |||||||||||||
| log(C/He) | |||||||||||||
| log(Ca/He) | |||||||||||||
| log(Ca/H) | |||||||||||||
| log(C/H) | |||||||||||||
| log(N/H) | |||||||||||||
| log(O/H) | |||||||||||||
| log(Na/H) | |||||||||||||
| log(Mg/H) | |||||||||||||
| log(Al/H) | |||||||||||||
| log(Si/H) | |||||||||||||
| log(P/H) | |||||||||||||
| log(S/H) | |||||||||||||
| log(Sc/H) | |||||||||||||
| log(Ti/H) | |||||||||||||
| log(Cr/H) | |||||||||||||
| log(Mn/H) | |||||||||||||
| log(Fe/H) | |||||||||||||
| log(Ni/H) | |||||||||||||
| Parallax | [mas] | 1.47 (0.3) | 1.33 (0.5) | 1.47 (0.3) | |||||||||
| Distance | [pc] | 681.75 (147) | 753.84 (268) | 681.76 (147) | |||||||||
| Composition | H | ||||||||||||
| Proper motion (right ascension) | [mas/yr] | -10.79322365 (0.3) | -11.20505894 (0.8) | -10.793 (0.3) | 3.7 | 2.0 | |||||||
| Proper motion (declination) | [mas/yr] | -18.93260627 (0.3) | -18.45935151 (0.8) | -18.933 (0.3) | -16.7 | -15.0 | |||||||
| Variability | |||||||||||||
| Magnetic | |||||||||||||
| Bd | [MG] | ||||||||||||
| Infrared excess (disk) | |||||||||||||
| Binarity | |||||||||||||
| B magnitude | |||||||||||||
| V magnitude | |||||||||||||
| R magnitude | |||||||||||||
| I magnitude | |||||||||||||
| J magnitude | |||||||||||||
| H magnitude | |||||||||||||
| K magnitude | |||||||||||||
| u magnitude | 19.44 (0.03) | 19.44 (0.03) | 19.45 (0.04) | 19.36 | 19.46 (0.03) | 19.36 (0.03) | |||||||
| g magnitude | 19.41 (0.01) | 19.41 (0.01) | 19.41 (0.03) | 19.43 | 19.41 (0.03) | 19.43 (0.05) | |||||||
| r magnitude | 19.85 (0.02) | 19.85 (0.02) | 19.86 (0.03) | 19.85 | 19.87 (0.03) | 19.85 (0.03) | |||||||
| i magnitude | 20.19 (0.04) | 20.18 (0.04) | 20.19 (0.04) | 20.18 | 20.19 (0.05) | 20.18 (0.04) | |||||||
| z magnitude | 20.84 (0.3) | 20.84 (0.3) | 20.85 (0.3) | 20.91 | 20.86 (0.2) | 20.91 (0.3) | |||||||
| G magnitude | 19.64 (0.04) | 19.67 | 19.64 (0.004) | ||||||||||
| BP magnitude | 19.59 (0.04) | 19.43 | |||||||||||
| RP magnitude | 19.78 (0.07) | 19.68 | |||||||||||
| Pan g magnitude | 19.48 (0.01) | ||||||||||||
| Pan r magnitude | 19.83 (0.01) | ||||||||||||
| Pan i magnitude | 20.11 (0.02) | ||||||||||||
| Pan z magnitude | 20.46 (0.07) | ||||||||||||
| Pan y magnitude | 20.13 (0.2) | ||||||||||||
| E(B-V) | 0.025 | ||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

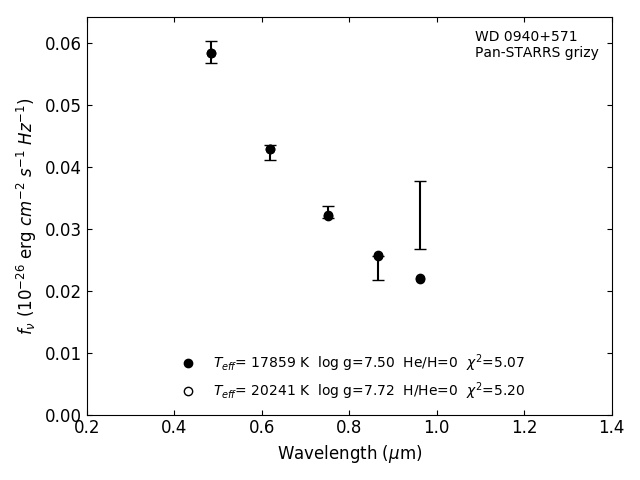

Photometric fit
