WD 1002+699
All names: SDSS J100642.41+694150.0, SDSS J100642.39+694149.9, WD 1002+699, FBS B 880, Gaia DR3 1070600145618332160, FBS 1002+699, J1006+6941, Gaia EDR3 1070600145618332160, WDJ100642.41+694149.78, 2MASS J10064247+6941495, [BGK2006] J100642.42+694150.0, SDSS J100642.40+694149.9, Gaia DR2 1070600145618332160, TIC 103631104
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | Kilic et al. 2025 | Kilic et al. 2020 | MWDD H | Gaia DR2 | Stilism | Vincent et al. 2024 | Simbad | Gentile Fusillo et al. 2018 | White Dwarf Catalog (McCook & Sion 1999) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 10 06 42.36 (0.03) | 10 06 42.36 (0.03) | 10 06 42.36 | 10 06 42.41 (0.03) | 10 06 42.36 | 10 06 42.36 | ||||||
| Declination | 69 41 50.36 (0.03) | 69 41 50.34 (0.04) | 69 41 50.36 | 69 41 49.78 (0.03) | 69 41 50.34 | 69 41 46.32 | ||||||
| Spectral type | DA | DA | DA | DA | DA | DA | ||||||
| Effective temperature | [K] | 14134.0 (121) | 14132.0 (120) | 13859.0 | 14982.0 (133) | |||||||
| log(g) | [cgs] | 7.95 (0.007) | 7.95 (0.008) | 7.93 | 8.01 (0.008) | |||||||
| Mass | [M☉] | 0.58 (0.006) | 0.582 (0.006) | 0.57 | 0.62 (0.007) | |||||||
| log(Luminosity) | [L☉] | |||||||||||
| Cooling age | [Gyr] | 0.2256 | ||||||||||
| log(H/He) | ||||||||||||
| log(C/He) | ||||||||||||
| log(Ca/He) | ||||||||||||
| log(Ca/H) | ||||||||||||
| log(C/H) | ||||||||||||
| log(N/H) | ||||||||||||
| log(O/H) | ||||||||||||
| log(Na/H) | ||||||||||||
| log(Mg/H) | ||||||||||||
| log(Al/H) | ||||||||||||
| log(Si/H) | ||||||||||||
| log(P/H) | ||||||||||||
| log(S/H) | ||||||||||||
| log(Sc/H) | ||||||||||||
| log(Ti/H) | ||||||||||||
| log(Cr/H) | ||||||||||||
| log(Mn/H) | ||||||||||||
| log(Fe/H) | ||||||||||||
| log(Ni/H) | ||||||||||||
| Parallax | [mas] | 11.96 (0.04) | 11.99 (0.05) | 11.96 | 11.96 (0.04) | 11.99 (0.05) | ||||||
| Distance | [pc] | 83.59 (0.3) | 83.37 (0.3) | 83.59 | 83.59 (0.3) | 83.37 (0.3) | ||||||
| Composition | H | H | ||||||||||
| Proper motion (right ascension) | [mas/yr] | -17.18970899 (0.03) | -17.16532933 (0.07) | -17.19 (0.03) | -17.16532933 | |||||||
| Proper motion (declination) | [mas/yr] | 36.07594561 (0.04) | 36.056573 (0.08) | 36.076 (0.04) | 36.056573 | |||||||
| Variability | ||||||||||||
| Magnetic | ||||||||||||
| Bd | [MG] | |||||||||||
| Infrared excess (disk) | ||||||||||||
| Binarity | ||||||||||||
| B magnitude | ||||||||||||
| V magnitude | ||||||||||||
| R magnitude | ||||||||||||
| I magnitude | ||||||||||||
| J magnitude | 16.03 (0.08) | |||||||||||
| H magnitude | ||||||||||||
| K magnitude | ||||||||||||
| u magnitude | 16.20 (0.006) | 16.20 (0.006) | ||||||||||
| g magnitude | 15.81 (0.003) | 15.81 (0.003) | ||||||||||
| r magnitude | 16.09 (0.004) | 16.09 (0.004) | ||||||||||
| i magnitude | 16.34 (0.005) | 16.34 (0.005) | ||||||||||
| z magnitude | 16.58 (0.009) | 16.58 (0.009) | ||||||||||
| G magnitude | 15.95 (0.003) | 15.98 | 15.95 | 15.95 (0.003) | 15.98 | |||||||
| BP magnitude | 15.93 (0.003) | 15.92 | 15.92 | |||||||||
| RP magnitude | 16.05 (0.002) | 16.06 | 16.06 | |||||||||
| Pan g magnitude | 15.85 (0.003) | |||||||||||
| Pan r magnitude | 16.09 (0.002) | |||||||||||
| Pan i magnitude | 16.35 (0.003) | |||||||||||
| Pan z magnitude | 16.58 (0.003) | |||||||||||
| Pan y magnitude | 16.75 (0.006) | |||||||||||
| E(B-V) | 0.004 | |||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

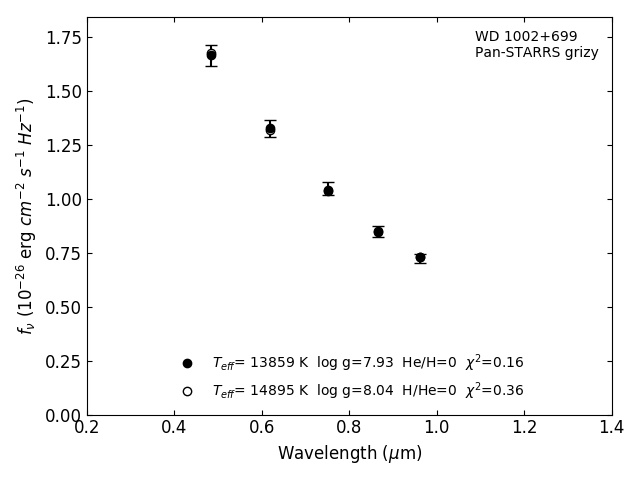

Photometric fit
