WD 1040+520
All names: SDSS J104350.84+514508.6, USNO-B1.0 1417-00230820, WD 1040+520, SDSS J104350.85+514508.6, SDSS J104350.84+514508.69, GALEX J104350.8+514508, Gaia DR3 837038411017250944, Gaia EDR3 837038411017250944, SBSS 1040+520, Gaia DR2 837038411017250944
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Kepler et al. 2016 | Vincent et al. 2024 | Simbad | White Dwarf Catalog (McCook & Sion 1999) | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 10 43 50.87 (0.06) | 10 43 50.85 | 10 43 50.87 (0.06) | 10 43 50.87 | 10 43 50.85 (0.06) | 10 43 50.06 | ||||||
| Declination | 51 45 08.71 (0.09) | 51 45 08.69 | 51 45 08.71 (0.1) | 51 45 08.71 | 51 45 08.71 (0.09) | 51 45 09.00 | ||||||
| Spectral type | DA | DA | DA | DA | DA | DA | ||||||
| Effective temperature | [K] | 18773.0 | 19926.0 (103) | 20129.0 (770) | ||||||||
| log(g) | [cgs] | 8.22 | 8.20 (0.02) | 8.23 (0.04) | ||||||||
| Mass | [M☉] | 0.751 | 0.727 (0.01) | 0.763 (0.04) | ||||||||
| log(Luminosity) | [L☉] | |||||||||||
| Cooling age | [Gyr] | 0.1408 | ||||||||||
| log(H/He) | ||||||||||||
| log(C/He) | ||||||||||||
| log(Ca/He) | ||||||||||||
| log(Ca/H) | ||||||||||||
| log(C/H) | ||||||||||||
| log(N/H) | ||||||||||||
| log(O/H) | ||||||||||||
| log(Na/H) | ||||||||||||
| log(Mg/H) | ||||||||||||
| log(Al/H) | ||||||||||||
| log(Si/H) | ||||||||||||
| log(P/H) | ||||||||||||
| log(S/H) | ||||||||||||
| log(Sc/H) | ||||||||||||
| log(Ti/H) | ||||||||||||
| log(Cr/H) | ||||||||||||
| log(Mn/H) | ||||||||||||
| log(Fe/H) | ||||||||||||
| log(Ni/H) | ||||||||||||
| Parallax | [mas] | 4.45 (0.1) | 4.60 (0.2) | 4.45 | 4.45 (0.1) | |||||||
| Distance | [pc] | 224.60 (6) | 217.20 (8) | 224.60 | 224.59 (6) | |||||||
| Composition | H | |||||||||||
| Proper motion (right ascension) | [mas/yr] | 7.841372529 (0.08) | 7.867676039 (0.2) | 7.841 (0.08) | ||||||||
| Proper motion (declination) | [mas/yr] | -0.262257504 (0.1) | -0.420182041 (0.3) | -0.262 (0.1) | ||||||||
| Variability | ||||||||||||
| Magnetic | ||||||||||||
| Bd | [MG] | |||||||||||
| Infrared excess (disk) | ||||||||||||
| Binarity | ||||||||||||
| B magnitude | 19.00 | |||||||||||
| V magnitude | ||||||||||||
| R magnitude | 17.30 | |||||||||||
| I magnitude | ||||||||||||
| J magnitude | ||||||||||||
| H magnitude | ||||||||||||
| K magnitude | ||||||||||||
| u magnitude | 17.79 (0.01) | 17.82 (0.03) | 17.79 (0.01) | |||||||||
| g magnitude | 17.69 (0.005) | 17.70 (0.02) | 17.69 (0.005) | |||||||||
| r magnitude | 18.09 (0.007) | 18.09 (0.02) | 18.09 (0.007) | |||||||||
| i magnitude | 18.39 (0.01) | 18.40 (0.02) | 18.39 (0.01) | |||||||||
| z magnitude | 18.71 (0.04) | 18.70 (0.04) | 18.70 (0.04) | |||||||||
| G magnitude | 17.92 (0.008) | 17.94 | 17.92 | 17.92 (0.003) | ||||||||
| BP magnitude | 17.83 (0.008) | 17.81 | ||||||||||
| RP magnitude | 18.09 (0.02) | 18.06 | ||||||||||
| Pan g magnitude | 17.77 (0.009) | |||||||||||
| Pan r magnitude | 18.09 (0.006) | |||||||||||
| Pan i magnitude | 18.42 (0.006) | |||||||||||
| Pan z magnitude | 18.68 (0.02) | |||||||||||
| Pan y magnitude | 18.82 (0.02) | |||||||||||
| E(B-V) | 0.016 | |||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

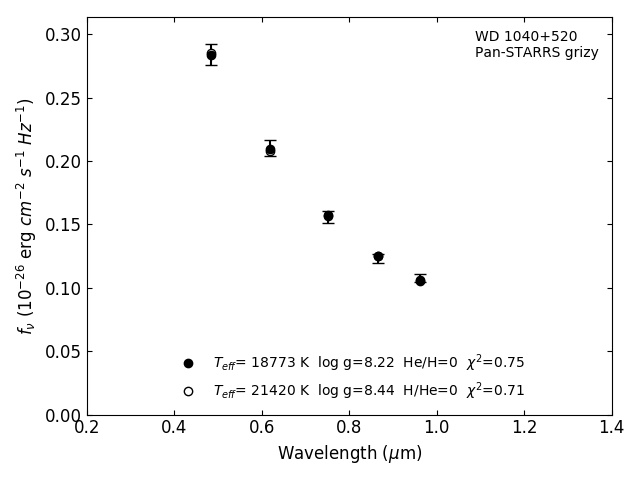

Photometric fit
