WD 1133+638
All names: SDSS J113613.58+633152.7, WD 1133+638, Gaia EDR3 863766714054401664, SDSS J113613.58+633152.6, GALEX J113613.5+633152, Gaia DR2 863766714054401664, Gaia DR3 863766714054401664, SDSS J113613.59+633152.7
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Simbad | Eisenstein et al. 2006 | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Kleinman et al. 2004 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 11 36 13.63 (0.4) | 11 36 13.58 | 11 36 13.62 (0.5) | 11 36 13.59 (0.4) | 11 36 13.59 | 11 36 12.55 | 11 36 13.59 | 11 36 13.59 | |||||
| Declination | 63 31 52.63 (0.4) | 63 31 52.68 | 63 31 52.63 (0.5) | 63 31 52.68 (0.4) | 63 31 52.70 | 63 31 48.00 | 63 31 52.70 | 63 31 52.72 | |||||
| Spectral type | DA | DA6 | DA | DA5.7 | DA | DA | |||||||
| Effective temperature | [K] | 8560.0 | 8814.0 (202) | 8617.0 (237) | 8894.0 (204) | ||||||||
| log(g) | [cgs] | 8.27 | 8.70 (0.3) | 8.75 (0.4) | 8.73 (0.3) | ||||||||
| Mass | [M☉] | 0.768 | 1.042 (0.2) | ||||||||||
| log(Luminosity) | [L☉] | ||||||||||||
| Cooling age | [Gyr] | 1.3640 | |||||||||||
| log(H/He) | |||||||||||||
| log(C/He) | |||||||||||||
| log(Ca/He) | |||||||||||||
| log(Ca/H) | |||||||||||||
| log(C/H) | |||||||||||||
| log(N/H) | |||||||||||||
| log(O/H) | |||||||||||||
| log(Na/H) | |||||||||||||
| log(Mg/H) | |||||||||||||
| log(Al/H) | |||||||||||||
| log(Si/H) | |||||||||||||
| log(P/H) | |||||||||||||
| log(S/H) | |||||||||||||
| log(Sc/H) | |||||||||||||
| log(Ti/H) | |||||||||||||
| log(Cr/H) | |||||||||||||
| log(Mn/H) | |||||||||||||
| log(Fe/H) | |||||||||||||
| log(Ni/H) | |||||||||||||
| Parallax | [mas] | 3.26 (0.5) | 3.69 (0.7) | 3.26 (0.5) | |||||||||
| Distance | [pc] | 306.84 (51) | 271.17 (52) | 306.83 (51) | |||||||||
| Composition | H | ||||||||||||
| Proper motion (right ascension) | [mas/yr] | 15.64139479 (0.5) | 16.69191294 (1) | 15.641 (0.5) | 18.6 | 17.0 | |||||||
| Proper motion (declination) | [mas/yr] | -3.463292301 (0.6) | -1.84733937 (1) | -3.463 (0.6) | 14.1 | 15.0 | |||||||
| Variability | |||||||||||||
| Magnetic | |||||||||||||
| Bd | [MG] | ||||||||||||
| Infrared excess (disk) | |||||||||||||
| Binarity | |||||||||||||
| B magnitude | |||||||||||||
| V magnitude | |||||||||||||
| R magnitude | |||||||||||||
| I magnitude | |||||||||||||
| J magnitude | |||||||||||||
| H magnitude | |||||||||||||
| K magnitude | |||||||||||||
| u magnitude | 20.74 (0.06) | 20.74 (0.06) | 20.73 (0.07) | 20.74 | 20.74 (0.07) | 20.74 (0.07) | |||||||
| g magnitude | 20.35 (0.02) | 20.35 (0.02) | 20.30 (0.03) | 20.30 | 20.32 (0.03) | 20.30 (0.03) | |||||||
| r magnitude | 20.33 (0.03) | 20.33 (0.03) | 20.38 (0.04) | 20.38 | 20.37 (0.04) | 20.38 (0.03) | |||||||
| i magnitude | 20.36 (0.04) | 20.36 (0.04) | 20.33 (0.05) | 20.34 | 20.34 (0.05) | 20.34 (0.05) | |||||||
| z magnitude | 20.63 (0.2) | 20.63 (0.2) | 20.46 (0.2) | 20.45 | 20.46 (0.2) | 20.45 (0.2) | |||||||
| G magnitude | 20.32 (0.08) | 20.39 | 20.32 (0.006) | ||||||||||
| BP magnitude | 20.24 (0.08) | 20.25 | |||||||||||
| RP magnitude | 20.09 (0.09) | 20.28 | |||||||||||
| Pan g magnitude | 20.33 (0.02) | ||||||||||||
| Pan r magnitude | 20.39 (0.02) | ||||||||||||
| Pan i magnitude | 20.43 (0.02) | ||||||||||||
| Pan z magnitude | 20.45 (0.03) | ||||||||||||
| Pan y magnitude | 20.28 (0.2) | ||||||||||||
| E(B-V) | 0.020 | ||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

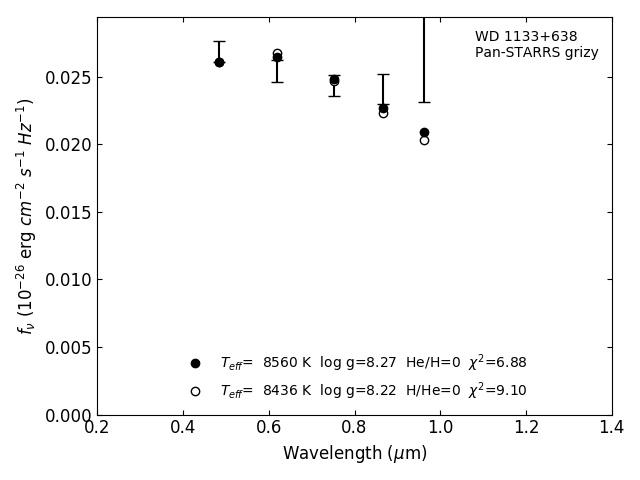

Photometric fit
