WD 1135-001B
All names: SDSS J113748.30-002714.6, SDSS J113748.30-002714.7, PSO J113748.305+002714.603, Gaia DR2 3794254579793954688, SDSS J113748.31-002714.7, WIRED J113748.30-002714.6, WD 1135-001B, 2QZ J113748.2-002715
| Parameter | Unit | MWDD H | Pan-STARRS DR1 | Gaia DR2 | Harris et al. 2003 | SDSS DR12 | Simbad | Eisenstein et al. 2006 | Eisenstein et al. 2006 | Kleinman et al. 2013 | Kleinman et al. 2013 | Kleinman et al. 2013 | Kleinman et al. 2004 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 11 37 48.30 (0.5) | 11 37 48.31 | 11 37 48.31 | 11 37 48.31 | 11 37 48.31 | 11 37 48.30 | 11 37 48.30 | 11 37 48.31 | 11 37 48.30 | ||||
| Declination | -00 27 14.83 (0.3) | -00 27 14.67 | -00 27 14.67 | -00 27 14.67 | -00 27 14.67 | -00 27 14.67 | -00 27 14.67 | -00 27 14.67 | -00 27 14.65 | ||||
| Spectral type | DA4 | DA4 | DA | DA | DA | DA | DA | DA | |||||
| Effective temperature | [K] | 12849.0 | 16953.0 (348) | 16907.0 (414) | 17715.0 (430) | 17616.0 (363) | 17079.0 (284) | 17021.0 (351) | |||||
| log(g) | [cgs] | 7.00 | 7.93 (0.08) | 7.62 (0.1) | 7.74 (0.1) | 8.06 (0.08) | 7.90 (0.06) | 7.97 (0.08) | |||||
| Mass | [M☉] | 0.23399999999999999 | 0.5660000000000001 (0.03) | ||||||||||
| log(Luminosity) | [L☉] | ||||||||||||
| Cooling age | [Gyr] | 0.1065 | |||||||||||
| log(H/He) | |||||||||||||
| log(C/He) | |||||||||||||
| log(Ca/He) | |||||||||||||
| log(Ca/H) | |||||||||||||
| log(C/H) | |||||||||||||
| log(N/H) | |||||||||||||
| log(O/H) | |||||||||||||
| log(Na/H) | |||||||||||||
| log(Mg/H) | |||||||||||||
| log(Al/H) | |||||||||||||
| log(Si/H) | |||||||||||||
| log(P/H) | |||||||||||||
| log(S/H) | |||||||||||||
| log(Sc/H) | |||||||||||||
| log(Ti/H) | |||||||||||||
| log(Cr/H) | |||||||||||||
| log(Mn/H) | |||||||||||||
| log(Fe/H) | |||||||||||||
| log(Ni/H) | |||||||||||||
| Parallax | [mas] | 1.35 (0.6) | |||||||||||
| Distance | [pc] | 739.93 (315) | |||||||||||
| Composition | H | ||||||||||||
| Proper motion (right ascension) | [mas/yr] | -6.350577978 (1) | 0.0 | -11.1 | -11.1 | -10.0 | |||||||
| Proper motion (declination) | [mas/yr] | -9.701976166 (0.6) | 1.0 | -8.6 | -8.6 | -11.0 | |||||||
| Variability | |||||||||||||
| Magnetic | |||||||||||||
| Bd | [MG] | ||||||||||||
| Infrared excess (disk) | |||||||||||||
| Binarity | |||||||||||||
| B magnitude | 19.44 | ||||||||||||
| V magnitude | |||||||||||||
| R magnitude | |||||||||||||
| I magnitude | |||||||||||||
| J magnitude | |||||||||||||
| H magnitude | 19.15 | ||||||||||||
| K magnitude | |||||||||||||
| u magnitude | 19.60 | 19.54 (0.03) | 19.58 | 19.60 (0.03) | 19.60 (0.03) | 19.61 (0.03) | 19.61 (0.03) | 19.61 (0.03) | 19.60 (0.03) | ||||
| g magnitude | 19.35 | 19.32 (0.01) | 19.32 | 19.34 (0.03) | 19.34 (0.03) | 19.33 (0.03) | 19.33 (0.03) | 19.33 (0.03) | 19.35 (0.03) | ||||
| r magnitude | 19.64 | 19.64 (0.02) | 19.65 | 19.64 (0.02) | 19.64 (0.02) | 19.63 (0.02) | 19.63 (0.02) | 19.63 (0.02) | 19.64 (0.02) | ||||
| i magnitude | 19.93 | 19.93 (0.02) | 19.93 | 19.93 (0.03) | 19.93 (0.03) | 19.93 (0.03) | 19.93 (0.03) | 19.93 (0.03) | 19.93 (0.03) | ||||
| z magnitude | 20.03 | 20.10 (0.1) | 20.06 | 20.06 (0.1) | 20.06 (0.1) | 20.06 (0.1) | 20.06 (0.1) | 20.06 (0.1) | 20.03 (0.1) | ||||
| G magnitude | 19.58 | ||||||||||||
| BP magnitude | 19.37 | ||||||||||||
| RP magnitude | 19.39 | ||||||||||||
| Pan g magnitude | 19.34 (0.01) | ||||||||||||
| Pan r magnitude | 19.68 (0.01) | ||||||||||||
| Pan i magnitude | 19.87 (0.04) | ||||||||||||
| Pan z magnitude | 20.12 (0.05) | ||||||||||||
| Pan y magnitude | 19.89 (0.08) | ||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

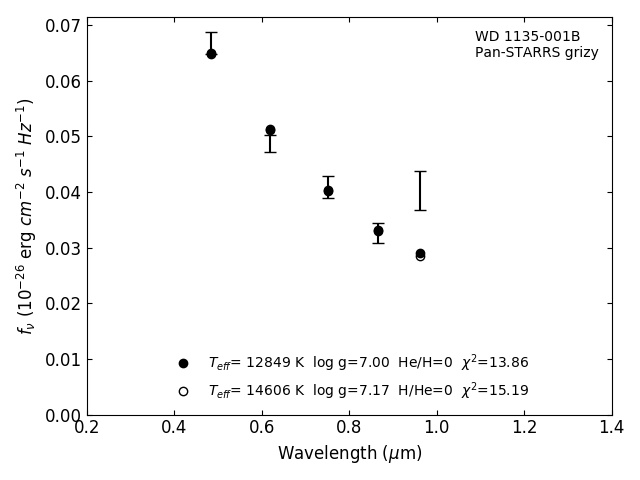

Photometric fit
