WD 1145+080
All names: SDSS J114757.93+074741.4, SDSS J114757.73+074739.6, G 57-20, USNO-B1.0 0977-00263639, WDJ114757.97+074741.71, Gaia EDR3 3911460633824772224, 2MASS J11475796+0747416, Gaia DR2 3911460633824772224, PG 1145+081, GALEX J114757.8+074741, G 11-23, SDSS J114757.92+074741.3, TIC 350475588, LSPM J1147+0747, NLTT 28593, GEN# +9.80011023, WD 1145+080, Gaia DR3 3911460633824772224, J1147+0747
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | Kilic et al. 2025 | Caron et al. 2023 | MWDD H | MWDD HE | Gaia DR2 | Stilism | Vincent et al. 2024 | Simbad | Gentile Fusillo et al. 2018 | White Dwarf Catalog (McCook & Sion 1999) | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 11 47 57.64 (0.04) | 11 47 57.65 (0.07) | 11 47 57.64 | 11 47 57.97 (0.04) | 11 47 57.65 | 11 47 58.30 | ||||||||
| Declination | 07 47 39.04 (0.04) | 07 47 39.12 (0.05) | 07 47 39.04 | 07 47 41.71 (0.04) | 07 47 39.12 | 07 47 43.44 | ||||||||
| Spectral type | DQA | DQA | DC6 | DC6 | DQ | DC6 | DC6 | DQ | ||||||
| Effective temperature | [K] | 8782.0 (196) | 8728.0 (22) | 9732.0 | 9569.0 | 8320.0 (57) | ||||||||
| log(g) | [cgs] | 7.93 (0.03) | 7.94 (0.005) | 8.28 | 8.20 | 7.83 (0.01) | ||||||||
| Mass | [M☉] | 0.538 (0.02) | 0.541 (0.005) | 0.774 | 0.705 | 0.479 (0.009) | ||||||||
| log(Luminosity) | [L☉] | |||||||||||||
| Cooling age | [Gyr] | 0.8600 | 0.9777 | 0.9413 | ||||||||||
| log(H/He) | -4.0 | |||||||||||||
| log(C/He) | -4.86 | -4.9 | ||||||||||||
| log(Ca/He) | ||||||||||||||
| log(Ca/H) | ||||||||||||||
| log(N/He) | ||||||||||||||
| log(O/He) | ||||||||||||||
| log(Na/He) | ||||||||||||||
| log(Mg/He) | ||||||||||||||
| log(Al/He) | ||||||||||||||
| log(Si/He) | ||||||||||||||
| log(P/He) | ||||||||||||||
| log(S/He) | ||||||||||||||
| log(Cl/He) | ||||||||||||||
| log(Sc/He) | ||||||||||||||
| log(Ti/He) | ||||||||||||||
| log(V/He) | ||||||||||||||
| log(Cr/He) | ||||||||||||||
| log(Mn/He) | ||||||||||||||
| log(Fe/He) | ||||||||||||||
| log(Co/He) | ||||||||||||||
| log(Ni/He) | ||||||||||||||
| log(Cu/He) | ||||||||||||||
| log(Zn/He) | ||||||||||||||
| log(Ga/He) | ||||||||||||||
| log(Ge/He) | ||||||||||||||
| log(Sr/He) | ||||||||||||||
| Parallax | [mas] | 23.26 (0.06) | 23.31 (0.08) | 23.31 (0.08) | 23.26 | 23.26 (0.06) | 23.31 (0.08) | |||||||
| Distance | [pc] | 42.99 (0.1) | 42.90 (0.1) | 42.90 (0.1) | 42.99 | 42.99 (0.1) | 42.90 (0.1) | |||||||
| Composition | He | He | ||||||||||||
| Proper motion (right ascension) | [mas/yr] | -309.5151867 (0.05) | -309.6104358 (0.1) | -309.515 (0.05) | -309.6104358 | |||||||||
| Proper motion (declination) | [mas/yr] | -166.6445772 (0.05) | -166.6516472 (0.09) | -166.645 (0.05) | -166.6516472 | |||||||||
| Variability | ||||||||||||||
| Magnetic | ||||||||||||||
| Bd | [MG] | |||||||||||||
| Infrared excess (disk) | ||||||||||||||
| Binarity | ||||||||||||||
| B magnitude | ||||||||||||||
| V magnitude | ||||||||||||||
| R magnitude | 16.10 | |||||||||||||
| I magnitude | ||||||||||||||
| J magnitude | 15.74 (0.01) | 15.70 (0.08) | ||||||||||||
| H magnitude | 15.74 (0.02) | 15.78 (0.1) | ||||||||||||
| K magnitude | 15.73 (0.02) | |||||||||||||
| u magnitude | 16.08 (0.006) | 16.09 (0.006) | 16.09 (0.006) | |||||||||||
| g magnitude | 15.85 (0.003) | 15.85 (0.003) | ||||||||||||
| r magnitude | 15.91 (0.004) | 15.91 (0.004) | ||||||||||||
| i magnitude | 16.03 (0.004) | 16.03 (0.004) | ||||||||||||
| z magnitude | 16.18 (0.007) | 16.18 (0.007) | ||||||||||||
| G magnitude | 15.85 (0.005) | 15.87 | 15.85 | 15.85 (0.003) | 15.87 | |||||||||
| BP magnitude | 15.91 (0.005) | 15.90 | 15.90 | |||||||||||
| RP magnitude | 15.72 (0.004) | 15.73 | 15.73 | |||||||||||
| Pan g magnitude | 15.88 (0.008) | 15.88 (0.008) | ||||||||||||
| Pan r magnitude | 15.91 (0.0009) | 15.91 (0.0009) | ||||||||||||
| Pan i magnitude | 16.05 (0.002) | 16.05 (0.002) | ||||||||||||
| Pan z magnitude | 16.21 (0.0009) | 16.21 (0.0009) | ||||||||||||
| Pan y magnitude | 16.32 (0.007) | 16.32 (0.007) | ||||||||||||
| E(B-V) | 0.001 | |||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

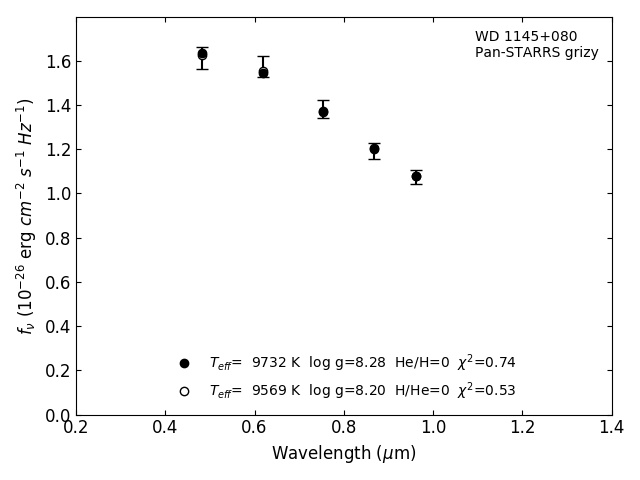

Photometric fit
