WD 1202+308
All names: WIRED J120525.01+303444.6, 2MASS J12052498+3034449, PG 1202+308, SDSS J120525.01+303444.6, WD 1202+308, LAMOST J120525.01+303444.6, LAMOST J120525.03+303444.8, PG 1202+309, Gaia EDR3 4014289538234943360, SDSS J120525.00+303444.6, GALEX J120525.0+303444, SDSS J120525.01+303444.7, Gaia DR2 4014289538234943360, Gaia DR3 4014289538234943360, CBS 52, Ton 75, TIC 359031368
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | Bedard et al. 2020 | MWDD H | Gaia DR2 | Stilism | Guo et al. 2015 | Gianninas et al. 2011 | Vincent et al. 2024 | Simbad | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 12 05 25.01 (0.05) | 12 05 25.01 | 12 05 25.01 (0.09) | 12 05 25.01 | 12 05 25.01 (0.05) | 12 05 25.03 | 12 05 25.01 | ||||||||
| Declination | 30 34 44.15 (0.04) | 30 34 44.71 | 30 34 44.17 (0.05) | 30 34 44.15 | 30 34 44.93 (0.04) | 30 34 48.00 | 30 34 44.67 | ||||||||
| Spectral type | DA | DA | DA | DA | DA | DA1.7 | DA | DA | DA | ||||||
| Effective temperature | [K] | 30015.0 (73) | 26396.0 | 30218.0 (73) | 29670.0 (465) | 30889.0 (954) | 29665.0 (70) | ||||||||
| log(g) | [cgs] | 7.81 (0.02) | 7.72 | 7.90 (0.02) | 7.82 (0.06) | 7.91 (0.03) | 7.82 (0.02) | ||||||||
| Mass | [M☉] | 0.55 (0.01) | 0.501 | 0.59 (0.01) | 0.55 (0.03) | 0.6 (0.02) | 0.56 (0.009) | ||||||||
| log(Luminosity) | [L☉] | -0.77 (0.01) | |||||||||||||
| Cooling age | [Gyr] | 0.0087 (0.0002) | 0.0138 | ||||||||||||
| log(H/He) | |||||||||||||||
| log(C/He) | |||||||||||||||
| log(Ca/He) | |||||||||||||||
| log(Ca/H) | |||||||||||||||
| log(C/H) | |||||||||||||||
| log(N/H) | |||||||||||||||
| log(O/H) | |||||||||||||||
| log(Na/H) | |||||||||||||||
| log(Mg/H) | |||||||||||||||
| log(Al/H) | |||||||||||||||
| log(Si/H) | |||||||||||||||
| log(P/H) | |||||||||||||||
| log(S/H) | |||||||||||||||
| log(Sc/H) | |||||||||||||||
| log(Ti/H) | |||||||||||||||
| log(Cr/H) | |||||||||||||||
| log(Mn/H) | |||||||||||||||
| log(Fe/H) | |||||||||||||||
| log(Ni/H) | |||||||||||||||
| Parallax | [mas] | 5.37 (0.06) | 5.45 (0.09) | 5.37 | 5.37 (0.06) | ||||||||||
| Distance | [pc] | 186.29 (2) | 183.41 (3) | 114.00 | 186.29 | 186.29 (2) | |||||||||
| Composition | H | H | H | ||||||||||||
| Proper motion (right ascension) | [mas/yr] | -3.140878324 (0.06) | -3.015489204 (0.1) | -3.141 (0.06) | |||||||||||
| Proper motion (declination) | [mas/yr] | -48.89464764 (0.04) | -48.71808104 (0.1) | -48.895 (0.04) | |||||||||||
| Variability | |||||||||||||||
| Magnetic | |||||||||||||||
| Bd | [MG] | ||||||||||||||
| Infrared excess (disk) | |||||||||||||||
| Binarity | |||||||||||||||
| B magnitude | 15.30 | ||||||||||||||
| V magnitude | |||||||||||||||
| R magnitude | |||||||||||||||
| I magnitude | |||||||||||||||
| J magnitude | 16.71 (0.1) | ||||||||||||||
| H magnitude | 16.27 (0.07) | ||||||||||||||
| K magnitude | 17.25 (0.08) | ||||||||||||||
| u magnitude | 15.64 (0.004) | 15.64 (0.004) | 15.69 | 15.71 (0.02) | |||||||||||
| g magnitude | 15.89 (0.004) | 15.89 (0.004) | 15.87 | 15.89 (0.02) | |||||||||||
| r magnitude | 16.36 (0.005) | 16.36 (0.005) | 16.32 (0.01) | ||||||||||||
| i magnitude | 16.69 (0.005) | 16.69 (0.005) | 16.73 (0.02) | ||||||||||||
| z magnitude | 17.03 (0.01) | 17.03 (0.01) | 17.02 (0.02) | ||||||||||||
| G magnitude | 16.12 (0.004) | 16.14 | 16.12 | 16.12 (0.003) | |||||||||||
| BP magnitude | 15.98 (0.004) | 15.93 | |||||||||||||
| RP magnitude | 16.40 (0.009) | 16.39 | |||||||||||||
| Pan g magnitude | 15.95 (0.003) | ||||||||||||||
| Pan r magnitude | 16.36 (0.003) | ||||||||||||||
| Pan i magnitude | 16.71 (0.007) | ||||||||||||||
| Pan z magnitude | 17.01 (0.003) | ||||||||||||||
| Pan y magnitude | 17.18 (0.01) | ||||||||||||||
| E(B-V) | 0.009 | ||||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

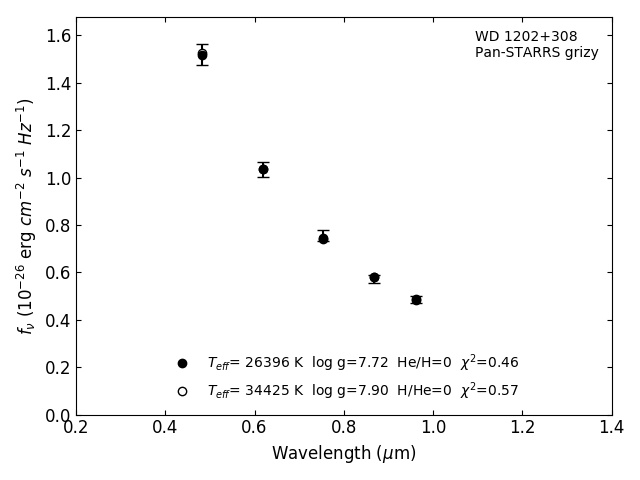

Photometric fit
