WD 1236+005
All names: Gaia DR2 3696212914651746432, 2QZ J123837.1+001842, FOCAP QNY2:06, SDSS J123837.11+001843.2, GALEX J123837.1+001842, SDSS J123837.12+001843.1, Gaia EDR3 3696212914651746432, SDSS J123837.11+001843.1, WD 1236+005, Gaia DR3 3696212914651746432
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Simbad | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 12 38 37.12 (0.2) | 12 38 37.12 | 12 38 37.12 (0.3) | 12 38 37.12 (0.2) | 12 38 36.67 | 12 38 37.12 | |||||
| Declination | 00 18 42.98 (0.1) | 00 18 43.17 | 00 18 42.98 (0.2) | 00 18 43.23 (0.1) | 00 18 43.20 | 00 18 43.14 | |||||
| Spectral type | DA | DA2.0 | DA | DA | DA | ||||||
| Effective temperature | [K] | 18670.0 | 22105.0 (223) | ||||||||
| log(g) | [cgs] | 7.73 | 7.87 (0.03) | ||||||||
| Mass | [M☉] | 0.482 | 0.564 (0.01) | ||||||||
| log(Luminosity) | [L☉] | ||||||||||
| Cooling age | [Gyr] | 0.0550 | |||||||||
| log(H/He) | |||||||||||
| log(C/He) | |||||||||||
| log(Ca/He) | |||||||||||
| log(Ca/H) | |||||||||||
| log(C/H) | |||||||||||
| log(N/H) | |||||||||||
| log(O/H) | |||||||||||
| log(Na/H) | |||||||||||
| log(Mg/H) | |||||||||||
| log(Al/H) | |||||||||||
| log(Si/H) | |||||||||||
| log(P/H) | |||||||||||
| log(S/H) | |||||||||||
| log(Sc/H) | |||||||||||
| log(Ti/H) | |||||||||||
| log(Cr/H) | |||||||||||
| log(Mn/H) | |||||||||||
| log(Fe/H) | |||||||||||
| log(Ni/H) | |||||||||||
| Parallax | [mas] | 1.95 (0.2) | 1.98 (0.4) | 1.95 (0.2) | |||||||
| Distance | [pc] | 513.40 (66) | 504.93 (89) | 513.40 (66) | |||||||
| Composition | H | ||||||||||
| Proper motion (right ascension) | [mas/yr] | -3.187122323 (0.3) | -2.180689983 (0.9) | -3.187 (0.3) | |||||||
| Proper motion (declination) | [mas/yr] | -16.12252101 (0.3) | -16.09509522 (0.4) | -16.123 (0.3) | |||||||
| Variability | |||||||||||
| Magnetic | |||||||||||
| Bd | [MG] | ||||||||||
| Infrared excess (disk) | |||||||||||
| Binarity | |||||||||||
| B magnitude | 19.16 | ||||||||||
| V magnitude | 19.20 | ||||||||||
| R magnitude | |||||||||||
| I magnitude | |||||||||||
| J magnitude | |||||||||||
| H magnitude | |||||||||||
| K magnitude | |||||||||||
| u magnitude | 18.85 (0.02) | 18.85 (0.02) | 18.84 (0.02) | ||||||||
| g magnitude | 18.82 (0.008) | 18.82 (0.008) | 18.84 (0.01) | ||||||||
| r magnitude | 19.21 (0.01) | 19.21 (0.01) | 19.23 (0.03) | ||||||||
| i magnitude | 19.54 (0.02) | 19.54 (0.02) | 19.55 (0.03) | ||||||||
| z magnitude | 19.89 (0.09) | 19.89 (0.09) | 19.93 (0.1) | ||||||||
| G magnitude | 19.04 (0.02) | 19.08 | 19.04 (0.004) | ||||||||
| BP magnitude | 18.97 (0.02) | 18.96 | |||||||||
| RP magnitude | 19.29 (0.05) | 19.22 | |||||||||
| Pan g magnitude | 18.87 (0.01) | ||||||||||
| Pan r magnitude | 19.23 (0.008) | ||||||||||
| Pan i magnitude | 19.53 (0.006) | ||||||||||
| Pan z magnitude | 19.76 (0.03) | ||||||||||
| Pan y magnitude | 19.98 (0.06) | ||||||||||
| E(B-V) | 0.023 | ||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

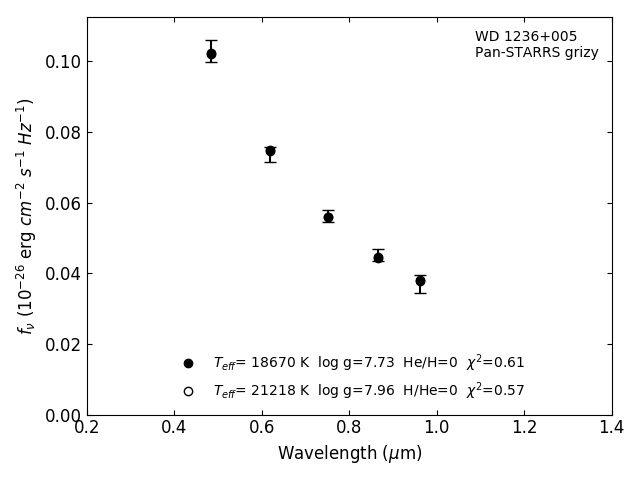

Photometric fit
