WD 1302+682
All names: SDSS J130415.81+680134.0, SDSS J130415.82+680134.1, Gaia DR2 1679507069444967808, GALEX J130415.8+680135, Gaia DR3 1679507069444967808, Gaia EDR3 1679507069444967808, SDSS J130415.83+680134.1, SDSS J130415.82+680134.0, WD 1302+682
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Vincent et al. 2024 | Simbad | Eisenstein et al. 2006 | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Kleinman et al. 2004 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 13 04 15.72 (0.2) | 13 04 15.82 | 13 04 15.73 (0.2) | 13 04 15.72 | 13 04 15.82 (0.2) | 13 04 15.83 | 13 04 14.28 | 13 04 15.82 | 13 04 15.82 | |||||
| Declination | 68 01 34.96 (0.1) | 68 01 34.14 | 68 01 34.94 (0.2) | 68 01 34.96 | 68 01 34.17 (0.1) | 68 01 34.13 | 68 01 32.16 | 68 01 34.09 | 68 01 34.07 | |||||
| Spectral type | DA | DA | DA6 | DA | DA5.5 | DA | DA | |||||||
| Effective temperature | [K] | 8478.0 | 9284.0 (357) | 9003.0 (88) | 8861.0 (100) | 9084.0 (90) | ||||||||
| log(g) | [cgs] | 7.86 | 8.13 (0.07) | 8.40 (0.2) | 8.15 (0.2) | 8.49 (0.1) | ||||||||
| Mass | [M☉] | 0.516 | 0.678 (0.07) | 0.684 (0.1) | ||||||||||
| log(Luminosity) | [L☉] | |||||||||||||
| Cooling age | [Gyr] | 0.7661 | ||||||||||||
| log(H/He) | ||||||||||||||
| log(C/He) | ||||||||||||||
| log(Ca/He) | ||||||||||||||
| log(Ca/H) | ||||||||||||||
| log(C/H) | ||||||||||||||
| log(N/H) | ||||||||||||||
| log(O/H) | ||||||||||||||
| log(Na/H) | ||||||||||||||
| log(Mg/H) | ||||||||||||||
| log(Al/H) | ||||||||||||||
| log(Si/H) | ||||||||||||||
| log(P/H) | ||||||||||||||
| log(S/H) | ||||||||||||||
| log(Sc/H) | ||||||||||||||
| log(Ti/H) | ||||||||||||||
| log(Cr/H) | ||||||||||||||
| log(Mn/H) | ||||||||||||||
| log(Fe/H) | ||||||||||||||
| log(Ni/H) | ||||||||||||||
| Parallax | [mas] | 5.30 (0.2) | 5.18 (0.2) | 5.30 | 5.30 (0.2) | |||||||||
| Distance | [pc] | 188.70 (6) | 193.23 (7) | 188.70 | 188.70 (6) | |||||||||
| Composition | H | |||||||||||||
| Proper motion (right ascension) | [mas/yr] | -35.78763325 (0.2) | -35.12146688 (0.5) | -35.788 (0.2) | -29.5 | -31.0 | ||||||||
| Proper motion (declination) | [mas/yr] | 49.68687847 (0.2) | 49.5544817 (0.3) | 49.687 (0.2) | 49.5 | 52.0 | ||||||||
| Variability | ||||||||||||||
| Magnetic | ||||||||||||||
| Bd | [MG] | |||||||||||||
| Infrared excess (disk) | ||||||||||||||
| Binarity | ||||||||||||||
| B magnitude | ||||||||||||||
| V magnitude | ||||||||||||||
| R magnitude | ||||||||||||||
| I magnitude | ||||||||||||||
| J magnitude | ||||||||||||||
| H magnitude | ||||||||||||||
| K magnitude | ||||||||||||||
| u magnitude | 19.50 (0.03) | 19.50 (0.03) | 19.50 (0.04) | 19.51 | 19.50 (0.04) | 19.51 (0.04) | ||||||||
| g magnitude | 19.05 (0.01) | 19.05 (0.01) | 19.00 (0.04) | 18.99 | 18.99 (0.04) | 18.99 (0.04) | ||||||||
| r magnitude | 19.05 (0.01) | 19.05 (0.01) | 19.06 (0.03) | 19.07 | 19.05 (0.03) | 19.07 (0.03) | ||||||||
| i magnitude | 19.08 (0.02) | 19.09 (0.02) | 19.08 (0.03) | 19.08 | 19.08 (0.03) | 19.08 (0.04) | ||||||||
| z magnitude | 19.21 (0.06) | 19.21 (0.07) | 19.22 (0.06) | 19.22 | 19.22 (0.06) | 19.22 (0.07) | ||||||||
| G magnitude | 18.97 (0.03) | 19.01 | 18.97 | 18.97 (0.004) | ||||||||||
| BP magnitude | 19.12 (0.03) | 19.13 | ||||||||||||
| RP magnitude | 18.92 (0.04) | 18.83 | ||||||||||||
| Pan g magnitude | 19.06 (0.01) | |||||||||||||
| Pan r magnitude | 18.99 (0.03) | |||||||||||||
| Pan i magnitude | 19.11 (0.01) | |||||||||||||
| Pan z magnitude | 19.20 (0.03) | |||||||||||||
| Pan y magnitude | 19.26 (0.09) | |||||||||||||
| E(B-V) | 0.013 | |||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

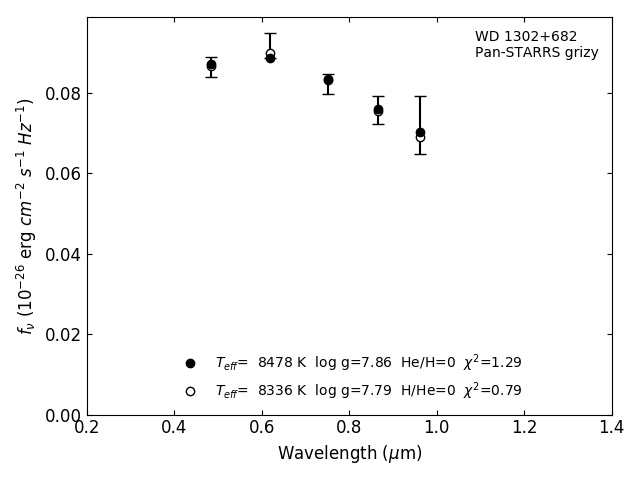

Photometric fit
