WD 1317+021
All names: [VV98b] J131955.1+015258, LEDA 46495, 2QZ J131955.0+015258, SDSS J131955.04+015259.5, [VV2000b] J131955.1+015258, Gaia DR2 3688370510527371008, WD 1317+021, LBQS 1317+0208, UM 566, Gaia DR3 3688370510527371008, Gaia EDR3 3688370510527371008, SDSS J131955.03+015259.7, SDSS J131955.03+015259.77
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR10 | SDSS DR12 | Hardy et al. 2023a | MWDD H | Gaia DR2 | Stilism | Kepler et al. 2015 | Vincent et al. 2024 | Simbad | White Dwarf Catalog (McCook & Sion 1999) | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 13 19 55.02 (0.1) | 13 19 55.05 | 13 19 55.05 | 13 19 55.03 (0.2) | 13 19 55.02 | 13 19 55.05 (0.1) | 13 19 54.98 | |||||||
| Declination | 01 52 59.76 (0.1) | 01 52 59.52 | 01 52 59.52 | 01 52 59.75 (0.1) | 01 52 59.76 | 01 52 59.43 (0.1) | 01 52 58.08 | |||||||
| Spectral type | DA | DAH: | DAH: | DA | DA3.0 | DA3.0 | DA | |||||||
| Effective temperature | [K] | 17350.8 (630) | 11685.0 | 18462.0 (122) | 16259.0 (858) | |||||||||
| log(g) | [cgs] | 7.43 (0.8) | 6.96 | 7.66 (0.02) | 7.27 (0.08) | |||||||||
| Mass | [M☉] | 0.3606816863146889 (0.05) | 0.221 | 0.308 (0.03) | ||||||||||
| log(Luminosity) | [L☉] | |||||||||||||
| Cooling age | [Gyr] | |||||||||||||
| log(H/He) | ||||||||||||||
| log(C/He) | ||||||||||||||
| log(Ca/He) | ||||||||||||||
| log(Ca/H) | ||||||||||||||
| log(C/H) | ||||||||||||||
| log(N/H) | ||||||||||||||
| log(O/H) | ||||||||||||||
| log(Na/H) | ||||||||||||||
| log(Mg/H) | ||||||||||||||
| log(Al/H) | ||||||||||||||
| log(Si/H) | ||||||||||||||
| log(P/H) | ||||||||||||||
| log(S/H) | ||||||||||||||
| log(Sc/H) | ||||||||||||||
| log(Ti/H) | ||||||||||||||
| log(Cr/H) | ||||||||||||||
| log(Mn/H) | ||||||||||||||
| log(Fe/H) | ||||||||||||||
| log(Ni/H) | ||||||||||||||
| Parallax | [mas] | 2.40 (0.2) | 2.52 (0.2) | 2.40 | 2.40 (0.2) | |||||||||
| Distance | [pc] | 416.30 (29) | 396.61 (32) | 416.30 | 416.30 (29) | |||||||||
| Composition | H | |||||||||||||
| Proper motion (right ascension) | [mas/yr] | -20.16721597 (0.2) | -20.8585089 (0.5) | -20.167 (0.2) | ||||||||||
| Proper motion (declination) | [mas/yr] | 20.3570539 (0.1) | 20.91473118 (0.3) | 20.357 (0.1) | ||||||||||
| Variability | ||||||||||||||
| Magnetic | ||||||||||||||
| Bd | [MG] | |||||||||||||
| Infrared excess (disk) | ||||||||||||||
| Binarity | ||||||||||||||
| B magnitude | 18.26 | |||||||||||||
| V magnitude | 18.20 | |||||||||||||
| R magnitude | ||||||||||||||
| I magnitude | ||||||||||||||
| J magnitude | ||||||||||||||
| H magnitude | 17.79 (0.05) | |||||||||||||
| K magnitude | 17.57 (0.1) | |||||||||||||
| u magnitude | 18.32 (0.02) | 18.32 (0.02) | 18.33 (0.02) | 18.32 (0.01) | ||||||||||
| g magnitude | 18.11 (0.006) | 18.12 (0.006) | 18.14 (0.02) | 18.11 (0.006) | ||||||||||
| r magnitude | 18.45 (0.009) | 18.46 (0.009) | 18.46 (0.02) | 18.45 (0.009) | ||||||||||
| i magnitude | 18.70 (0.01) | 18.71 (0.01) | 18.71 (0.02) | 18.70 (0.01) | ||||||||||
| z magnitude | 18.83 (0.04) | 18.84 (0.04) | 18.84 (0.05) | 18.83 (0.04) | ||||||||||
| G magnitude | 18.28 (0.01) | 18.31 | 18.28 | 18.28 (0.003) | ||||||||||
| BP magnitude | 18.24 (0.01) | 18.25 | ||||||||||||
| RP magnitude | 18.38 (0.02) | 18.35 | ||||||||||||
| Pan g magnitude | 18.14 (0.005) | |||||||||||||
| Pan r magnitude | 18.44 (0.01) | |||||||||||||
| Pan i magnitude | 18.71 (0.006) | |||||||||||||
| Pan z magnitude | 18.85 (0.007) | |||||||||||||
| Pan y magnitude | 18.87 (0.01) | |||||||||||||
| E(B-V) | 0.024 | |||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

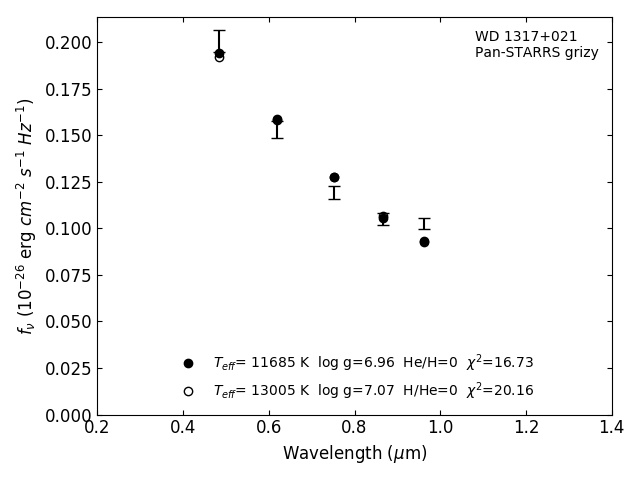

Photometric fit
