WD 1522+545
All names: CSO 750, SDSS J152356.57+542256.8, WD 1522+545, SDSS J152356.58+542256.7, SDSS J152356.57+542256.87, Gaia DR3 1599573471755615872, Gaia DR2 1599573467458776704, SBSS 1522+545, USNO-B1.0 1443-00241905, Gaia EDR3 1599573471755615872
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Kepler et al. 2016 | Vincent et al. 2024 | Simbad | White Dwarf Catalog (McCook & Sion 1999) | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 15 23 56.57 (0.07) | 15 23 56.59 | 15 23 56.57 (0.1) | 15 23 56.57 | 15 23 56.59 (0.07) | 15 23 56.26 | ||||||
| Declination | 54 22 57.01 (0.07) | 54 22 56.79 | 54 22 57.00 (0.2) | 54 22 57.01 | 54 22 56.81 (0.07) | 54 22 50.88 | ||||||
| Spectral type | DA | DA | DA | DA | DA | DA | ||||||
| Effective temperature | [K] | 20610.0 | 21694.0 (136) | 23007.0 (895) | ||||||||
| log(g) | [cgs] | 7.78 | 7.86 (0.02) | 7.93 (0.04) | ||||||||
| Mass | [M☉] | 0.51 | 0.5579999999999999 (0.009) | 0.595 (0.03) | ||||||||
| log(Luminosity) | [L☉] | |||||||||||
| Cooling age | [Gyr] | 0.0372 | ||||||||||
| log(H/He) | ||||||||||||
| log(C/He) | ||||||||||||
| log(Ca/He) | ||||||||||||
| log(Ca/H) | ||||||||||||
| log(C/H) | ||||||||||||
| log(N/H) | ||||||||||||
| log(O/H) | ||||||||||||
| log(Na/H) | ||||||||||||
| log(Mg/H) | ||||||||||||
| log(Al/H) | ||||||||||||
| log(Si/H) | ||||||||||||
| log(P/H) | ||||||||||||
| log(S/H) | ||||||||||||
| log(Sc/H) | ||||||||||||
| log(Ti/H) | ||||||||||||
| log(Cr/H) | ||||||||||||
| log(Mn/H) | ||||||||||||
| log(Fe/H) | ||||||||||||
| log(Ni/H) | ||||||||||||
| Parallax | [mas] | 3.58 (0.08) | 3.48 (0.1) | 3.58 | 3.58 (0.08) | |||||||
| Distance | [pc] | 279.22 (6) | 287.37 (10) | 279.22 | 279.22 (6) | |||||||
| Composition | H | |||||||||||
| Proper motion (right ascension) | [mas/yr] | -10.27998001 (0.08) | -10.15071594 (0.2) | -10.28 (0.08) | ||||||||
| Proper motion (declination) | [mas/yr] | 12.41703564 (0.09) | 12.71828967 (0.3) | 12.417 (0.09) | ||||||||
| Variability | ||||||||||||
| Magnetic | ||||||||||||
| Bd | [MG] | |||||||||||
| Infrared excess (disk) | ||||||||||||
| Binarity | ||||||||||||
| B magnitude | 17.30 | |||||||||||
| V magnitude | ||||||||||||
| R magnitude | 17.70 | |||||||||||
| I magnitude | ||||||||||||
| J magnitude | ||||||||||||
| H magnitude | ||||||||||||
| K magnitude | ||||||||||||
| u magnitude | 17.42 (0.009) | 17.45 (0.02) | 17.43 (0.009) | |||||||||
| g magnitude | 17.45 (0.005) | 17.47 (0.01) | 17.45 (0.005) | |||||||||
| r magnitude | 17.87 (0.006) | 17.89 (0.01) | 17.87 (0.006) | |||||||||
| i magnitude | 18.17 (0.009) | 18.18 (0.01) | 18.16 (0.009) | |||||||||
| z magnitude | 18.47 (0.03) | 18.50 (0.03) | 18.48 (0.03) | |||||||||
| G magnitude | 17.70 (0.007) | 17.71 | 17.70 | 17.70 (0.003) | ||||||||
| BP magnitude | 17.61 (0.007) | 17.55 | ||||||||||
| RP magnitude | 17.92 (0.01) | 17.90 | ||||||||||
| Pan g magnitude | 17.54 (0.005) | |||||||||||
| Pan r magnitude | 17.88 (0.004) | |||||||||||
| Pan i magnitude | 18.20 (0.006) | |||||||||||
| Pan z magnitude | 18.47 (0.008) | |||||||||||
| Pan y magnitude | 18.68 (0.03) | |||||||||||
| E(B-V) | 0.019 | |||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

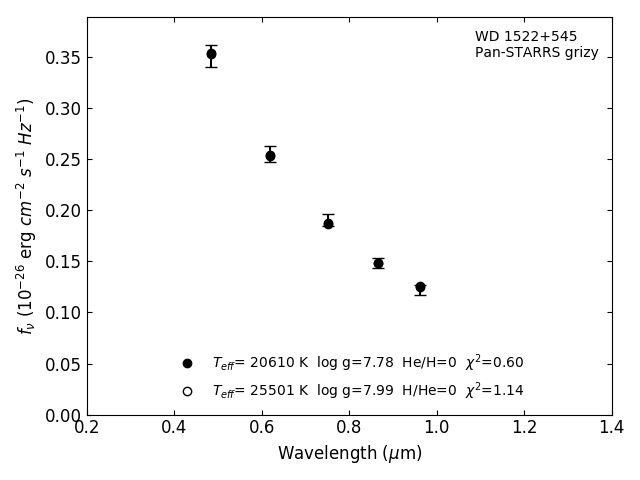

Photometric fit
