WD 1605+514
All names: SDSS J160710.27+511829.2, SDSS J160710.28+511829.1, Gaia DR3 1403632008534257024, SDSS J160710.27+511829.3, SBSS 1605+514, WD 1605+514, GALEX J160710.3+511829, Gaia EDR3 1403632008534257024, Gaia DR2 1403632008534257024
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Vincent et al. 2024 | Simbad | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 16 07 10.29 (0.1) | 16 07 10.28 | 16 07 10.29 (0.1) | 16 07 10.29 | 16 07 10.28 (0.1) | 16 07 10.22 | 16 07 10.27 | |||||
| Declination | 51 18 29.27 (0.1) | 51 18 29.31 | 51 18 29.27 (0.1) | 51 18 29.27 | 51 18 29.30 (0.1) | 51 18 27.72 | 51 18 29.22 | |||||
| Spectral type | DA | DA | DA | DA | DA | DA | ||||||
| Effective temperature | [K] | 20424.0 | 24990.0 (1793) | 25263.0 (228) | ||||||||
| log(g) | [cgs] | 7.78 | 8.03 (0.08) | 7.98 (0.03) | ||||||||
| Mass | [M☉] | 0.512 | 0.653 (0.07) | 0.624 (0.01) | ||||||||
| log(Luminosity) | [L☉] | |||||||||||
| Cooling age | [Gyr] | 0.0388 | ||||||||||
| log(H/He) | ||||||||||||
| log(C/He) | ||||||||||||
| log(Ca/He) | ||||||||||||
| log(Ca/H) | ||||||||||||
| log(C/H) | ||||||||||||
| log(N/H) | ||||||||||||
| log(O/H) | ||||||||||||
| log(Na/H) | ||||||||||||
| log(Mg/H) | ||||||||||||
| log(Al/H) | ||||||||||||
| log(Si/H) | ||||||||||||
| log(P/H) | ||||||||||||
| log(S/H) | ||||||||||||
| log(Sc/H) | ||||||||||||
| log(Ti/H) | ||||||||||||
| log(Cr/H) | ||||||||||||
| log(Mn/H) | ||||||||||||
| log(Fe/H) | ||||||||||||
| log(Ni/H) | ||||||||||||
| Parallax | [mas] | 2.69 (0.1) | 2.63 (0.1) | 2.69 | 2.69 (0.1) | |||||||
| Distance | [pc] | 371.83 (16) | 379.97 (20) | 371.83 | 371.83 (16) | |||||||
| Composition | H | |||||||||||
| Proper motion (right ascension) | [mas/yr] | 4.614628478 (0.1) | 4.417370737 (0.2) | 4.615 (0.1) | ||||||||
| Proper motion (declination) | [mas/yr] | -1.83646529 (0.2) | -2.020385135 (0.3) | -1.836 (0.2) | ||||||||
| Variability | ||||||||||||
| Magnetic | ||||||||||||
| Bd | [MG] | |||||||||||
| Infrared excess (disk) | ||||||||||||
| Binarity | ||||||||||||
| B magnitude | ||||||||||||
| V magnitude | ||||||||||||
| R magnitude | ||||||||||||
| I magnitude | ||||||||||||
| J magnitude | ||||||||||||
| H magnitude | ||||||||||||
| K magnitude | ||||||||||||
| u magnitude | 18.01 (0.01) | 18.01 (0.01) | 18.01 (0.02) | |||||||||
| g magnitude | 18.11 (0.006) | 18.11 (0.006) | 18.13 (0.02) | |||||||||
| r magnitude | 18.52 (0.008) | 18.52 (0.008) | 18.55 (0.02) | |||||||||
| i magnitude | 18.90 (0.01) | 18.90 (0.01) | 18.89 (0.02) | |||||||||
| z magnitude | 19.23 (0.05) | 19.23 (0.05) | 19.22 (0.06) | |||||||||
| G magnitude | 18.33 (0.01) | 18.36 | 18.33 | 18.33 (0.003) | ||||||||
| BP magnitude | 18.23 (0.01) | 18.19 | ||||||||||
| RP magnitude | 18.55 (0.02) | 18.49 | ||||||||||
| Pan g magnitude | 18.16 (0.007) | |||||||||||
| Pan r magnitude | 18.51 (0.009) | |||||||||||
| Pan i magnitude | 18.84 (0.009) | |||||||||||
| Pan z magnitude | 19.14 (0.02) | |||||||||||
| Pan y magnitude | 19.23 (0.03) | |||||||||||
| E(B-V) | 0.019 | |||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

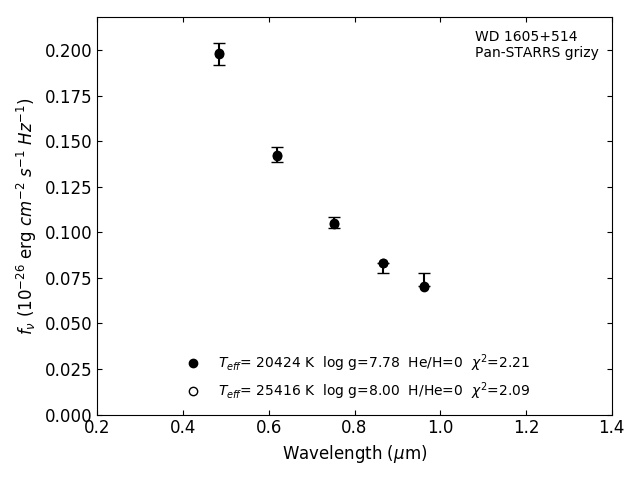

Photometric fit
