WD 1612+510
All names: SDSS J161331.25+505408.3, Gaia DR3 1424556917401206400, Gaia DR2 1424556917401206400, 2MASS J16133132+5054081, SDSS J161331.29+505408.2, SDSS J161331.30+505408.1, SDSS J161331.29+505408.1, WD 1612+510, TIC 162553917, Gaia EDR3 1424556917401206400, GALEX J161331.2+505408
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Tremblay et al. 2011 | Vincent et al. 2024 | Simbad | Eisenstein et al. 2006 | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Kleinman et al. 2004 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 16 13 31.15 (0.07) | 16 13 31.25 | 16 13 31.16 (0.09) | 16 13 31.15 | 16 13 31.30 (0.07) | 16 13 31.30 | 16 13 30.24 | 16 13 31.30 | 16 13 31.30 | ||||||
| Declination | 50 54 08.68 (0.07) | 50 54 08.36 | 50 54 08.66 (0.1) | 50 54 08.68 | 50 54 08.14 (0.07) | 50 54 08.23 | 50 54 04.32 | 50 54 08.15 | 50 54 08.14 | ||||||
| Spectral type | DA | DA | DA | DA6 | DA | DA5.5 | DA | DA | |||||||
| Effective temperature | [K] | 9136.0 | 9270.0 (40) | 8950.0 (133) | 9190.0 (34) | 9093.0 (36) | 9246.0 (32) | ||||||||
| log(g) | [cgs] | 8.04 | 8.33 (0.06) | 7.98 (0.03) | 8.33 (0.05) | 8.11 (0.06) | 8.41 (0.04) | ||||||||
| Mass | [M☉] | 0.62 | 0.8 (0.04) | 0.586 (0.02) | 0.66 (0.04) | ||||||||||
| log(Luminosity) | [L☉] | ||||||||||||||
| Cooling age | [Gyr] | 0.8045 | 1.2303 | ||||||||||||
| log(H/He) | |||||||||||||||
| log(C/He) | |||||||||||||||
| log(Ca/He) | |||||||||||||||
| log(Ca/H) | |||||||||||||||
| log(C/H) | |||||||||||||||
| log(N/H) | |||||||||||||||
| log(O/H) | |||||||||||||||
| log(Na/H) | |||||||||||||||
| log(Mg/H) | |||||||||||||||
| log(Al/H) | |||||||||||||||
| log(Si/H) | |||||||||||||||
| log(P/H) | |||||||||||||||
| log(S/H) | |||||||||||||||
| log(Sc/H) | |||||||||||||||
| log(Ti/H) | |||||||||||||||
| log(Cr/H) | |||||||||||||||
| log(Mn/H) | |||||||||||||||
| log(Fe/H) | |||||||||||||||
| log(Ni/H) | |||||||||||||||
| Parallax | [mas] | 9.71 (0.07) | 9.77 (0.09) | 9.71 | 9.71 (0.07) | ||||||||||
| Distance | [pc] | 102.99 (0.8) | 102.34 (1) | 102.99 | 102.99 (0.8) | ||||||||||
| Composition | H | H | |||||||||||||
| Proper motion (right ascension) | [mas/yr] | -85.56737031 (0.08) | -85.85341347 (0.2) | -85.567 (0.08) | -87.5 | -88.0 | |||||||||
| Proper motion (declination) | [mas/yr] | 33.69474312 (0.1) | 33.49121664 (0.2) | 33.695 (0.1) | 30.5 | 35.0 | |||||||||
| Variability | |||||||||||||||
| Magnetic | |||||||||||||||
| Bd | [MG] | ||||||||||||||
| Infrared excess (disk) | |||||||||||||||
| Binarity | |||||||||||||||
| B magnitude | |||||||||||||||
| V magnitude | |||||||||||||||
| R magnitude | |||||||||||||||
| I magnitude | |||||||||||||||
| J magnitude | 16.85 (0.2) | ||||||||||||||
| H magnitude | |||||||||||||||
| K magnitude | |||||||||||||||
| u magnitude | 18.04 (0.01) | 18.04 (0.01) | 18.06 (0.02) | 18.05 | 18.04 (0.02) | 18.05 (0.02) | |||||||||
| g magnitude | 17.62 (0.005) | 17.62 (0.005) | 17.62 (0.03) | 17.61 | 17.65 (0.03) | 17.61 (0.03) | |||||||||
| r magnitude | 17.67 (0.006) | 17.67 (0.006) | 17.65 (0.02) | 17.66 | 17.66 (0.02) | 17.66 (0.02) | |||||||||
| i magnitude | 17.74 (0.007) | 17.74 (0.007) | 17.73 (0.02) | 17.72 | 17.74 (0.02) | 17.72 (0.02) | |||||||||
| z magnitude | 17.86 (0.02) | 17.86 (0.02) | 17.87 (0.04) | 17.87 | 17.88 (0.04) | 17.87 (0.04) | |||||||||
| G magnitude | 17.59 (0.008) | 17.61 | 17.59 | 17.59 (0.003) | |||||||||||
| BP magnitude | 17.69 (0.008) | 17.69 | |||||||||||||
| RP magnitude | 17.43 (0.008) | 17.45 | |||||||||||||
| Pan g magnitude | 17.62 (0.005) | ||||||||||||||
| Pan r magnitude | 17.66 (0.003) | ||||||||||||||
| Pan i magnitude | 17.76 (0.004) | ||||||||||||||
| Pan z magnitude | 17.88 (0.004) | ||||||||||||||
| Pan y magnitude | 17.98 (0.01) | ||||||||||||||
| E(B-V) | 0.013 | ||||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

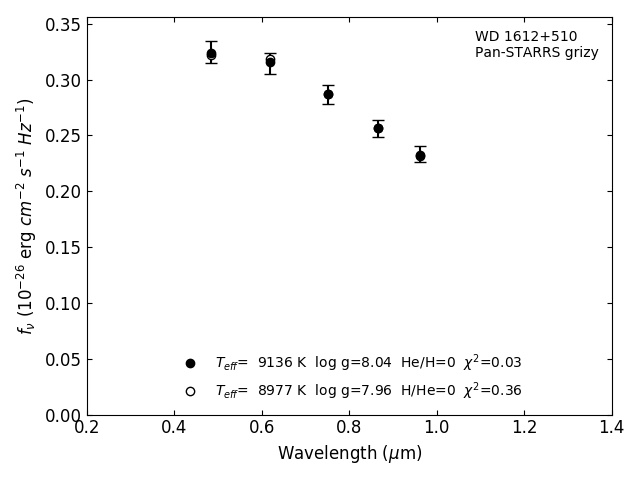

Photometric fit
