WD 1614+136
All names: USNO-B1.0 1035-00247622, Gaia EDR3 4463466804419970304, GALEX J161652.3+133421, WIRED J161652.30+133420.7, WD 1614+136, Gaia DR3 4463466804419970304, TIC 157154110, 2MASS J16165230+1334210, SDSS J161652.30+133420.7, PG 1614+137, Gaia DR2 4463466804419970304, SDSS J161652.29+133420.7
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Gianninas et al. 2011 | Koester et al. 2009 | Vincent et al. 2024 | Simbad | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 16 16 52.29 (0.03) | 16 16 52.30 | 16 16 52.29 (0.03) | 16 16 52.29 | 16 16 52.30 (0.03) | 16 16 52.22 | 16 16 52.30 | |||||||
| Declination | 13 34 20.18 (0.02) | 13 34 20.74 | 13 34 20.20 (0.03) | 13 34 20.18 | 13 34 20.93 (0.02) | 13 34 21.72 | 13 34 20.72 | |||||||
| Spectral type | DA | DA | DA | DA2.2 | DA2 | DA | DA | |||||||
| Effective temperature | [K] | 20075.0 | 23190.0 (353) | 22015.0 (30) | 21872.0 (304) | 22930.0 (104) | ||||||||
| log(g) | [cgs] | 7.19 | 7.38 (0.05) | 7.21 (0.005) | 7.26 (0.01) | 7.30 (0.01) | ||||||||
| Mass | [M☉] | 0.307 | 0.41 (0.01) | 0.333 (0.005) | 0.394 (0.003) | |||||||||
| log(Luminosity) | [L☉] | |||||||||||||
| Cooling age | [Gyr] | 0.0223 | ||||||||||||
| log(H/He) | ||||||||||||||
| log(C/He) | ||||||||||||||
| log(Ca/He) | ||||||||||||||
| log(Ca/H) | ||||||||||||||
| log(C/H) | ||||||||||||||
| log(N/H) | ||||||||||||||
| log(O/H) | ||||||||||||||
| log(Na/H) | ||||||||||||||
| log(Mg/H) | ||||||||||||||
| log(Al/H) | ||||||||||||||
| log(Si/H) | ||||||||||||||
| log(P/H) | ||||||||||||||
| log(S/H) | ||||||||||||||
| log(Sc/H) | ||||||||||||||
| log(Ti/H) | ||||||||||||||
| log(Cr/H) | ||||||||||||||
| log(Mn/H) | ||||||||||||||
| log(Fe/H) | ||||||||||||||
| log(Ni/H) | ||||||||||||||
| Parallax | [mas] | 7.10 (0.04) | 7.18 (0.05) | 7.10 | 7.10 (0.04) | |||||||||
| Distance | [pc] | 140.77 (0.7) | 139.26 (1) | 144.00 | 140.77 | 140.77 (0.7) | ||||||||
| Composition | H | H | ||||||||||||
| Proper motion (right ascension) | [mas/yr] | -2.95241034 (0.03) | -3.091995957 (0.07) | -2.952 (0.03) | ||||||||||
| Proper motion (declination) | [mas/yr] | -46.67856506 (0.03) | -46.84550723 (0.05) | -46.679 (0.03) | ||||||||||
| Variability | ||||||||||||||
| Magnetic | ||||||||||||||
| Bd | [MG] | |||||||||||||
| Infrared excess (disk) | ||||||||||||||
| Binarity | ||||||||||||||
| B magnitude | 15.16 | |||||||||||||
| V magnitude | 15.24 | 15.24 | ||||||||||||
| R magnitude | 15.40 | |||||||||||||
| I magnitude | ||||||||||||||
| J magnitude | 15.70 (0.06) | |||||||||||||
| H magnitude | 15.90 (0.1) | |||||||||||||
| K magnitude | 16.05 (0.08) | |||||||||||||
| u magnitude | 15.00 (0.005) | 15.01 (0.005) | 15.03 | 15.02 (0.02) | ||||||||||
| g magnitude | 15.01 (0.004) | 15.01 (0.004) | 15.01 | 15.02 (0.02) | ||||||||||
| r magnitude | 15.43 (0.004) | 15.43 (0.004) | 15.43 | 15.44 (0.01) | ||||||||||
| i magnitude | 15.74 (0.005) | 15.74 (0.005) | 15.74 | 15.74 (0.01) | ||||||||||
| z magnitude | 16.05 (0.008) | 16.05 (0.008) | 16.05 | 16.04 (0.02) | ||||||||||
| G magnitude | 15.24 (0.001) | 15.25 | 15.24 | 15.24 (0.003) | ||||||||||
| BP magnitude | 15.14 (0.001) | 15.09 | ||||||||||||
| RP magnitude | 15.44 (0.002) | 15.44 | ||||||||||||
| Pan g magnitude | 15.08 (0.006) | |||||||||||||
| Pan r magnitude | 15.45 (0.002) | |||||||||||||
| Pan i magnitude | 15.77 (0.005) | |||||||||||||
| Pan z magnitude | 16.03 (0.005) | |||||||||||||
| Pan y magnitude | 16.21 (0.005) | |||||||||||||
| E(B-V) | 0.018 | |||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

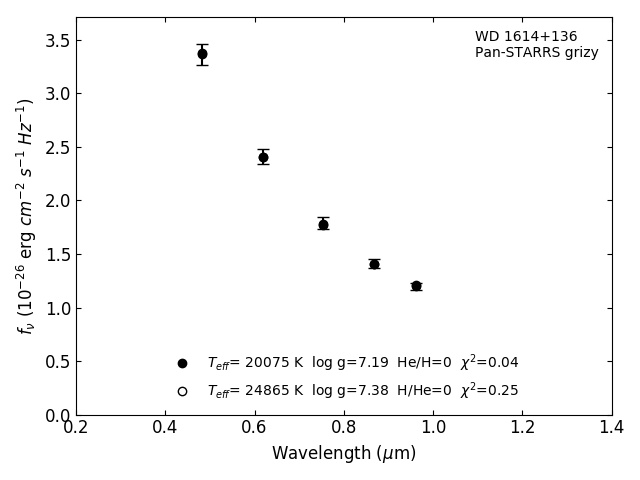

Photometric fit
