WD 1630+089
All names: NLTT 43022, GEN# +9.80138038, WDJ163233.17+085122.67, LSPM J1632+0851, WD 1630+089, 16325+0851, WISEA J163233.36+085119.9, GALEX J163233.3+085120, 2MASS J16323318+0851225, Gaia DR3 4440264291578812928, SDSS J163233.27+085121.2, PM J16325+0851, CNS5 4055, USNO-B1.0 0988-00278021, J1632+0851, Gaia EDR3 4440264291578812928, PSO J248.1390+08.8554, G138-038, Gaia DR2 4440264291578812928, TIC 291140753, G 138-38
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | O'Brien et al. 2024 | Caron et al. 2023 | McCleery et al. 2020 | Blouin et al. 2019 | MWDD H | Gaia DR2 | Subasavage et al. 2017 | Stilism | Holberg et al. 2016 | Limoges et al. 2015 | Sayres et al. 2012 | Vincent et al. 2024 | Simbad | Gentile Fusillo et al. 2018 | White Dwarf Catalog (McCook & Sion 1999) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 16 32 33.47 (0.02) | 16 32 33.46 (0.02) | 16 32 33.46 | 16 32 33.17 | 16 32 33.18 | 16 32 33.47 | 16 32 33.17 (0.02) | 16 32 33.46 | 16 32 33.07 | |||||||||
| Declination | 08 51 18.53 (0.01) | 08 51 18.66 (0.01) | 08 51 18.66 | 08 51 02.07 | 08 51 22.70 | 08 51 18.53 | 08 51 22.67 (0.01) | 08 51 18.66 | 08 51 18.00 | |||||||||
| Spectral type | DA | DA | DA | DA | DA | DA | DA | DA | DA8.0 | DA | DA8 | DA | ||||||
| Effective temperature | [K] | 5594.0 (24) | 5642.0 (11) | 5595.9 (6) | 5600.0 (25) | 5666.0 | 5670.0 (60) | 5630.0 (79) | 5730.0 (90) | 5740.0 (20) | 5707.0 (8) | |||||||
| log(g) | [cgs] | 8.02 (0.01) | 8.05 (0.004) | 8.02 (0.004) | 7.55 (0.02) | 7.58 | 8.07 (0.03) | 8.00 (0.04) | 8.00 (0) | 8.06 (0.003) | ||||||||
| Mass | [M☉] | 0.595 (0.009) | 0.616 (0.004) | 0.356 (0.007) | 0.367 | 0.63 (0.03) | 0.59 (0.02) | 0.59 (0.1) | 0.626 (0.003) | |||||||||
| log(Luminosity) | [L☉] | -3.86 (0.03) | -3.81 | |||||||||||||||
| Cooling age | [Gyr] | 3.1700 | 1.5140 (0.03) | 1.5040 | 3.2000 (0.3) | 2.9200 | ||||||||||||
| log(H/He) | ||||||||||||||||||
| log(C/He) | ||||||||||||||||||
| log(Ca/He) | ||||||||||||||||||
| log(Ca/H) | ||||||||||||||||||
| log(C/H) | ||||||||||||||||||
| log(N/H) | ||||||||||||||||||
| log(O/H) | ||||||||||||||||||
| log(Na/H) | ||||||||||||||||||
| log(Mg/H) | ||||||||||||||||||
| log(Al/H) | ||||||||||||||||||
| log(Si/H) | ||||||||||||||||||
| log(P/H) | ||||||||||||||||||
| log(S/H) | ||||||||||||||||||
| log(Sc/H) | ||||||||||||||||||
| log(Ti/H) | ||||||||||||||||||
| log(Cr/H) | ||||||||||||||||||
| log(Mn/H) | ||||||||||||||||||
| log(Fe/H) | ||||||||||||||||||
| log(Ni/H) | ||||||||||||||||||
| Parallax | [mas] | 77.35 (0.03) | 77.35 (0.03) | 77.35 (0.03) | 77.38 (0.03) | 58.51 (0.03) | 77.38 (0.03) | 77.62 (1) | 77.35 | 77.35 (0.03) | 77.38 (0.03) | |||||||
| Distance | [pc] | 12.93 (0.004) | 12.93 (0.005) | 12.93 (0.005) | 12.92 (0.006) | 17.09 (0.008) | 12.92 (0.006) | 12.88 (0.2) | 13.29 (0.2) | 13.80 (0.3) | 13.20 | 12.93 | 12.93 (0.004) | 12.92 (0.006) | ||||
| Composition | H | H | H | H | H | H | H | H | ||||||||||
| Proper motion (right ascension) | [mas/yr] | 278.0612399 (0.02) | 278.0214019 (0.04) | 278.061 (0.02) | 278.0214019 | |||||||||||||
| Proper motion (declination) | [mas/yr] | -259.0214398 (0.02) | -259.0286973 (0.02) | -259.021 (0.02) | -259.0286973 | |||||||||||||
| Variability | ||||||||||||||||||
| Magnetic | ||||||||||||||||||
| Bd | [MG] | |||||||||||||||||
| Infrared excess (disk) | ||||||||||||||||||
| Binarity | ||||||||||||||||||
| B magnitude | 15.71 | 15.26 | ||||||||||||||||
| V magnitude | 15.08 | 15.28 | ||||||||||||||||
| R magnitude | 14.70 | 14.60 | ||||||||||||||||
| I magnitude | 14.31 | |||||||||||||||||
| J magnitude | 13.85 (0.03) | 13.85 (0.03) | 13.85 (0.03) | 13.85 | 13.85 (0.03) | 13.85 (0.03) | ||||||||||||
| H magnitude | 13.61 (0.03) | 13.61 (0.03) | 13.61 (0.03) | 13.61 | 13.61 (0.03) | 13.61 (0.03) | ||||||||||||
| K magnitude | 13.49 (0.03) | 13.49 (0.03) | 13.49 (0.03) | 13.49 | 13.49 (0.03) | 13.49 (0.03) | ||||||||||||
| u magnitude | 16.44 (1) | 16.44 | 16.45 (0.007) | 16.43 (0.007) | 16.43 (0.006) | |||||||||||||
| g magnitude | 15.34 | 15.35 (0.004) | 15.34 (0.004) | 15.35 (0.004) | ||||||||||||||
| r magnitude | 14.88 | (0.005) | 14.90 (0.0009) | 14.89 (0.004) | ||||||||||||||
| i magnitude | 14.69 | 14.71 (0.005) | 14.72 (0.003) | 14.70 (0.005) | ||||||||||||||
| z magnitude | 14.64 | 14.65 (0.005) | 14.69 (0.002) | 14.64 (0.005) | ||||||||||||||
| G magnitude | 14.90 (0.001) | 14.91 | 14.91 | 14.90 | 14.90 (0.003) | 14.91 | ||||||||||||
| BP magnitude | 15.24 (0.001) | 15.26 | 15.26 | |||||||||||||||
| RP magnitude | 14.37 (0.0007) | 14.38 | 14.38 | |||||||||||||||
| Pan g magnitude | 15.32 (0.006) | 15.32 (0.005) | 15.32 (0.005) | |||||||||||||||
| Pan r magnitude | 14.90 (0.0009) | 14.90 (0.001) | 14.90 (0.001) | |||||||||||||||
| Pan i magnitude | 14.72 (0.004) | 14.72 (0.003) | 14.72 (0.003) | |||||||||||||||
| Pan z magnitude | 14.69 (0.002) | 14.69 (0.002) | 14.69 (0.002) | |||||||||||||||
| Pan y magnitude | 14.67 (0.002) | 14.67 (0.002) | 14.67 (0.002) | |||||||||||||||
| E(B-V) | 0.000 | |||||||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

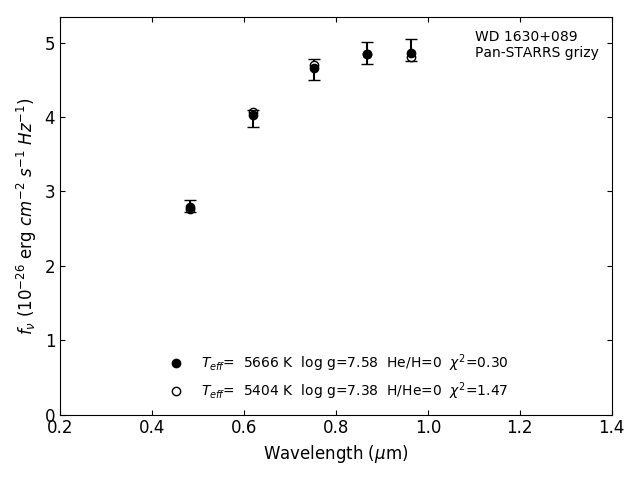

Photometric fit
