WD 1715+584
All names: SDSS J171639.77+582134.2, GALEX J171639.7+582135, Gaia DR2 1433900468431070208, SDSS J171639.77+582134.1, WD 1715+584, Gaia EDR3 1433900468431070208, SDSS J171639.76+582134.1, Gaia DR3 1433900468431070208, SDSS J171639.75+582134.0
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | Bedard et al. 2020 | MWDD H | Gaia DR2 | Stilism | Tremblay et al. 2011 | Simbad | Eisenstein et al. 2006 | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Kleinman et al. 2004 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 17 16 39.76 (0.2) | 17 16 39.76 | 17 16 39.76 (0.2) | 17 16 39.75 (0.2) | 17 16 39.75 | 17 16 38.23 | 17 16 39.77 | 17 16 39.77 | |||||||
| Declination | 58 21 34.25 (0.2) | 58 21 34.15 | 58 21 34.25 (0.2) | 58 21 34.11 (0.2) | 58 21 34.08 | 58 21 32.04 | 58 21 34.17 | 58 21 34.16 | |||||||
| Spectral type | DA | DA | DA | DA1.5 | DA | DA1.6 | DA | DA | |||||||
| Effective temperature | [K] | 32734.0 (761) | 25280.0 | 32810.0 (670) | 30958.0 (418) | 31778.0 (401) | 31421.0 (431) | ||||||||
| log(g) | [cgs] | 7.84 (0.2) | 7.31 | 7.83 (0.1) | 7.88 (0.08) | 7.90 (0.09) | 8.00 (0.08) | ||||||||
| Mass | [M☉] | 0.57 (0.07) | 0.357 | 0.57 (0.07) | 0.599 (0.04) | ||||||||||
| log(Luminosity) | [L☉] | -0.63 (0.1) | |||||||||||||
| Cooling age | [Gyr] | 0.0066 (0.0006) | 0.0157 | 0.0078 | |||||||||||
| log(H/He) | |||||||||||||||
| log(C/He) | |||||||||||||||
| log(Ca/He) | |||||||||||||||
| log(Ca/H) | |||||||||||||||
| log(C/H) | |||||||||||||||
| log(N/H) | |||||||||||||||
| log(O/H) | |||||||||||||||
| log(Na/H) | |||||||||||||||
| log(Mg/H) | |||||||||||||||
| log(Al/H) | |||||||||||||||
| log(Si/H) | |||||||||||||||
| log(P/H) | |||||||||||||||
| log(S/H) | |||||||||||||||
| log(Sc/H) | |||||||||||||||
| log(Ti/H) | |||||||||||||||
| log(Cr/H) | |||||||||||||||
| log(Mn/H) | |||||||||||||||
| log(Fe/H) | |||||||||||||||
| log(Ni/H) | |||||||||||||||
| Parallax | [mas] | 1.24 (0.2) | 1.08 (0.2) | 1.24 (0.2) | |||||||||||
| Distance | [pc] | 804.84 (116) | 926.09 (190) | 804.83 (116) | |||||||||||
| Composition | H | H | H | ||||||||||||
| Proper motion (right ascension) | [mas/yr] | 6.707648808 (0.2) | 6.896576577 (0.4) | 6.708 (0.2) | 16.4 | 15.0 | |||||||||
| Proper motion (declination) | [mas/yr] | 9.036232547 (0.2) | 8.866061247 (0.4) | 9.036 (0.2) | 5.6 | 8.0 | |||||||||
| Variability | |||||||||||||||
| Magnetic | |||||||||||||||
| Bd | [MG] | ||||||||||||||
| Infrared excess (disk) | |||||||||||||||
| Binarity | |||||||||||||||
| B magnitude | |||||||||||||||
| V magnitude | |||||||||||||||
| R magnitude | |||||||||||||||
| I magnitude | |||||||||||||||
| J magnitude | |||||||||||||||
| H magnitude | |||||||||||||||
| K magnitude | |||||||||||||||
| u magnitude | 18.61 (0.02) | 18.61 (0.02) | 18.62 (0.02) | 18.62 | 18.63 (0.02) | 18.62 (0.02) | |||||||||
| g magnitude | 18.84 (0.008) | 18.84 (0.008) | 18.87 (0.02) | 18.87 | 18.87 (0.02) | 18.87 (0.02) | |||||||||
| r magnitude | 19.28 (0.01) | 19.27 (0.01) | 19.26 (0.02) | 19.27 | 19.27 (0.02) | 19.27 (0.02) | |||||||||
| i magnitude | 19.61 (0.02) | 19.61 (0.02) | 19.61 (0.03) | 19.60 | 19.62 (0.03) | 19.60 (0.03) | |||||||||
| z magnitude | 19.76 (0.1) | 19.76 (0.1) | 19.78 (0.1) | 19.79 | 19.77 (0.1) | 19.79 (0.1) | |||||||||
| G magnitude | 19.06 (0.03) | 19.10 | 19.06 (0.004) | ||||||||||||
| BP magnitude | 18.93 (0.03) | 18.93 | |||||||||||||
| RP magnitude | 19.45 (0.04) | 19.36 | |||||||||||||
| Pan g magnitude | 18.89 (0.007) | ||||||||||||||
| Pan r magnitude | 19.30 (0.01) | ||||||||||||||
| Pan i magnitude | 19.63 (0.01) | ||||||||||||||
| Pan z magnitude | 19.94 (0.02) | ||||||||||||||
| Pan y magnitude | 19.68 (0.3) | ||||||||||||||
| E(B-V) | 0.024 | ||||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

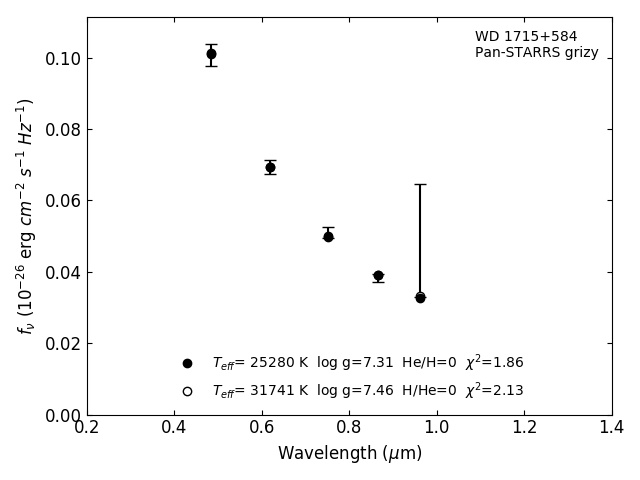

Photometric fit
