WD 1718+566
All names: SDSS J171933.35+563628.2, SDSS J171933.33+563628.2, GALEX J171933.2+563629, Gaia EDR3 1432754429421068160, Gaia DR2 1432754429421068160, Gaia DR3 1432754429421068160, SDSS J171933.34+563628.2, WD 1718+566
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Simbad | Eisenstein et al. 2006 | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Kleinman et al. 2004 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 17 19 33.32 (0.3) | 17 19 33.34 | 17 19 33.32 (0.4) | 17 19 33.34 (0.3) | 17 19 33.34 | 17 19 32.95 | 17 19 33.35 | 17 19 33.35 | |||||
| Declination | 56 36 28.30 (0.3) | 56 36 28.24 | 56 36 28.29 (0.3) | 56 36 28.19 (0.3) | 56 36 28.25 | 56 36 26.28 | 56 36 28.24 | 56 36 28.22 | |||||
| Spectral type | DA | DA | DA | DA3.0 | DA | DA | |||||||
| Effective temperature | [K] | 14047.0 | 16433.0 (391) | 15489.0 (486) | 16584.0 (387) | ||||||||
| log(g) | [cgs] | 7.85 | 7.81 (0.08) | 7.73 (0.1) | 7.84 (0.08) | ||||||||
| Mass | [M☉] | 0.529 | |||||||||||
| log(Luminosity) | [L☉] | ||||||||||||
| Cooling age | [Gyr] | 0.1931 | |||||||||||
| log(H/He) | |||||||||||||
| log(C/He) | |||||||||||||
| log(Ca/He) | |||||||||||||
| log(Ca/H) | |||||||||||||
| log(C/H) | |||||||||||||
| log(N/H) | |||||||||||||
| log(O/H) | |||||||||||||
| log(Na/H) | |||||||||||||
| log(Mg/H) | |||||||||||||
| log(Al/H) | |||||||||||||
| log(Si/H) | |||||||||||||
| log(P/H) | |||||||||||||
| log(S/H) | |||||||||||||
| log(Sc/H) | |||||||||||||
| log(Ti/H) | |||||||||||||
| log(Cr/H) | |||||||||||||
| log(Mn/H) | |||||||||||||
| log(Fe/H) | |||||||||||||
| log(Ni/H) | |||||||||||||
| Parallax | [mas] | 2.08 (0.3) | 1.93 (0.4) | 2.08 (0.3) | |||||||||
| Distance | [pc] | 481.07 (66) | 517.22 (105) | 481.07 (66) | |||||||||
| Composition | H | ||||||||||||
| Proper motion (right ascension) | [mas/yr] | -8.256563851 (0.4) | -7.522541679 (0.8) | -8.257 (0.4) | 3.5 | 2.0 | |||||||
| Proper motion (declination) | [mas/yr] | 6.424154612 (0.4) | 6.019603457 (0.8) | 6.424 (0.4) | 6.4 | 9.0 | |||||||
| Variability | |||||||||||||
| Magnetic | |||||||||||||
| Bd | [MG] | ||||||||||||
| Infrared excess (disk) | |||||||||||||
| Binarity | |||||||||||||
| B magnitude | |||||||||||||
| V magnitude | |||||||||||||
| R magnitude | |||||||||||||
| I magnitude | |||||||||||||
| J magnitude | |||||||||||||
| H magnitude | |||||||||||||
| K magnitude | |||||||||||||
| u magnitude | 20.02 (0.04) | 20.02 (0.04) | 20.03 (0.05) | 19.99 | 20.02 (0.05) | 19.99 (0.05) | |||||||
| g magnitude | 19.74 (0.01) | 19.74 (0.01) | 19.71 (0.02) | 19.71 | 19.69 (0.02) | 19.71 (0.02) | |||||||
| r magnitude | 19.99 (0.02) | 19.99 (0.02) | 20.01 (0.02) | 20.01 | 20.01 (0.02) | 20.01 (0.02) | |||||||
| i magnitude | 20.36 (0.04) | 20.36 (0.04) | 20.30 (0.04) | 20.29 | 20.31 (0.04) | 20.29 (0.04) | |||||||
| z magnitude | 20.32 (0.2) | 20.32 (0.2) | 20.65 (0.2) | 20.66 | 20.65 (0.2) | 20.66 (0.2) | |||||||
| G magnitude | 19.88 (0.05) | 19.94 | 19.88 (0.005) | ||||||||||
| BP magnitude | 19.93 (0.05) | 19.89 | |||||||||||
| RP magnitude | 19.90 (0.08) | 19.93 | |||||||||||
| Pan g magnitude | 19.76 (0.02) | ||||||||||||
| Pan r magnitude | 20.03 (0.01) | ||||||||||||
| Pan i magnitude | 20.28 (0.02) | ||||||||||||
| Pan z magnitude | 20.38 (0.03) | ||||||||||||
| Pan y magnitude | |||||||||||||
| E(B-V) | 0.025 | ||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

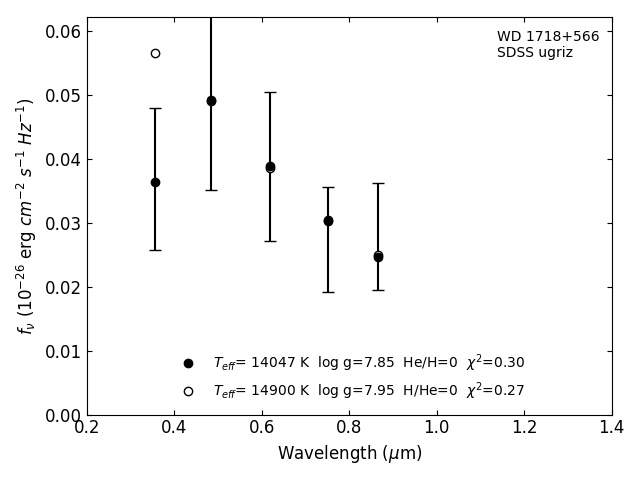

Photometric fit
