WD 1738+548
All names: Gaia DR3 1417961015866093312, Gaia DR2 1417961015866093312, SDSS J173915.64+545059.1, SDSS J173915.64+545059.2, WD 1738+548, Gaia EDR3 1417961015866093312, GALEX J173915.6+545059, SDSS J173915.64+545059.3, SDSS J173915.63+545059.2
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | SDSS DR12 | MWDD H | Gaia DR2 | Stilism | Simbad | Eisenstein et al. 2006 | White Dwarf Catalog (McCook & Sion 1999) | Kleinman et al. 2013 | Kleinman et al. 2004 | Vincent et al. 2023 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 17 39 15.63 (0.3) | 17 39 15.64 | 17 39 15.63 (0.3) | 17 39 15.64 (0.3) | 17 39 15.64 | 17 39 14.28 | 17 39 15.64 | 17 39 15.64 | |||||
| Declination | 54 50 58.95 (0.3) | 54 50 59.19 | 54 50 58.96 (0.4) | 54 50 59.29 (0.3) | 54 50 59.25 | 54 50 57.12 | 54 50 59.26 | 54 50 59.24 | |||||
| Spectral type | DA | DA | DA | DA4.4 | DA | DA | |||||||
| Effective temperature | [K] | 10331.0 | 12353.0 (542) | 12104.0 (799) | 11507.0 (733) | ||||||||
| log(g) | [cgs] | 7.40 | 7.88 (0.2) | 7.70 (0.2) | 7.49 (0.3) | ||||||||
| Mass | [M☉] | 0.322 | |||||||||||
| log(Luminosity) | [L☉] | ||||||||||||
| Cooling age | [Gyr] | 0.3018 | |||||||||||
| log(H/He) | |||||||||||||
| log(C/He) | |||||||||||||
| log(Ca/He) | |||||||||||||
| log(Ca/H) | |||||||||||||
| log(C/H) | |||||||||||||
| log(N/H) | |||||||||||||
| log(O/H) | |||||||||||||
| log(Na/H) | |||||||||||||
| log(Mg/H) | |||||||||||||
| log(Al/H) | |||||||||||||
| log(Si/H) | |||||||||||||
| log(P/H) | |||||||||||||
| log(S/H) | |||||||||||||
| log(Sc/H) | |||||||||||||
| log(Ti/H) | |||||||||||||
| log(Cr/H) | |||||||||||||
| log(Mn/H) | |||||||||||||
| log(Fe/H) | |||||||||||||
| log(Ni/H) | |||||||||||||
| Parallax | [mas] | 2.14 (0.3) | 1.85 (0.3) | 2.14 (0.3) | |||||||||
| Distance | [pc] | 467.30 (61) | 539.45 (101) | 467.29 (61) | |||||||||
| Composition | H | ||||||||||||
| Proper motion (right ascension) | [mas/yr] | -2.409517817 (0.3) | -1.688602858 (0.8) | -2.41 (0.3) | 8.6 | 8.0 | |||||||
| Proper motion (declination) | [mas/yr] | -21.38191266 (0.4) | -22.41808342 (0.9) | -21.382 (0.4) | -22.8 | -19.0 | |||||||
| Variability | |||||||||||||
| Magnetic | |||||||||||||
| Bd | [MG] | ||||||||||||
| Infrared excess (disk) | |||||||||||||
| Binarity | |||||||||||||
| B magnitude | |||||||||||||
| V magnitude | |||||||||||||
| R magnitude | |||||||||||||
| I magnitude | |||||||||||||
| J magnitude | |||||||||||||
| H magnitude | |||||||||||||
| K magnitude | |||||||||||||
| u magnitude | 20.38 (0.05) | 20.38 (0.05) | 20.31 (0.06) | 20.32 | 20.32 (0.06) | 20.32 (0.06) | |||||||
| g magnitude | 19.87 (0.01) | 19.87 (0.01) | 19.84 (0.02) | 19.84 | 19.84 (0.02) | 19.84 (0.03) | |||||||
| r magnitude | 19.97 (0.02) | 19.96 (0.02) | 19.99 (0.02) | 20.00 | 19.99 (0.02) | 20.00 (0.02) | |||||||
| i magnitude | 20.16 (0.03) | 20.16 (0.03) | 20.18 (0.04) | 20.18 | 20.19 (0.04) | 20.18 (0.04) | |||||||
| z magnitude | 20.36 (0.1) | 20.36 (0.1) | 20.31 (0.2) | 20.29 | 20.30 (0.2) | 20.29 (0.2) | |||||||
| G magnitude | 19.90 (0.05) | 19.96 | 19.90 (0.005) | ||||||||||
| BP magnitude | 20.02 (0.05) | 20.09 | |||||||||||
| RP magnitude | 19.98 (0.07) | 19.84 | |||||||||||
| Pan g magnitude | 19.84 (0.02) | ||||||||||||
| Pan r magnitude | 19.97 (0.02) | ||||||||||||
| Pan i magnitude | 20.20 (0.01) | ||||||||||||
| Pan z magnitude | 20.12 (0.05) | ||||||||||||
| Pan y magnitude | 20.38 (0.2) | ||||||||||||
| E(B-V) | 0.027 | ||||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

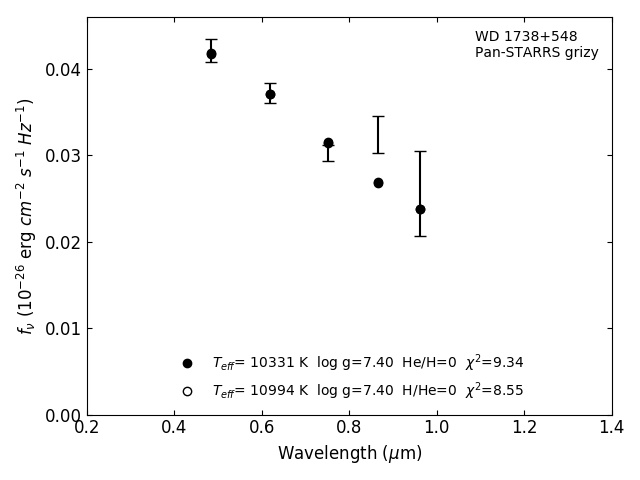

Photometric fit
