WD 2200-136
All names: WD 2200-136, TIC 102183555, BPS CS 22892-0017, EC 22008-1341, Gaia DR2 2612442135856683648, Gaia DR3 2612442135856683648, BPS CS 22892-17, 2MASS J22033557-1326492, Gaia EDR3 2612442135856683648, USNO-B1.0 0765-00696969
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | MWDD H | Gaia DR2 | Stilism | Gianninas et al. 2011 | Koester et al. 2009 | Vincent et al. 2024 | Simbad | White Dwarf Catalog (McCook & Sion 1999) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 22 03 35.54 (0.04) | 22 03 35.54 (0.06) | 22 03 35.54 | 22 03 35.57 (0.04) | 22 03 34.70 | ||||||
| Declination | -13 26 50.02 (0.04) | -13 26 49.99 (0.06) | -13 26 50.02 | -13 26 49.32 (0.04) | -13 26 45.24 | ||||||
| Spectral type | DA | DA | DA | DA2.0 | DA | ||||||
| Effective temperature | [K] | 17312.0 | 25820.0 (407) | 24734.0 (47) | 21843.0 (299) | ||||||
| log(g) | [cgs] | 7.10 | 7.71 (0.05) | 7.61 (0.006) | 7.37 (0.01) | ||||||
| Mass | [M☉] | 0.276 | 0.49 (0.02) | 0.36 (0.005) | |||||||
| log(Luminosity) | [L☉] | ||||||||||
| Cooling age | [Gyr] | 0.0485 | |||||||||
| log(H/He) | |||||||||||
| log(C/He) | |||||||||||
| log(Ca/He) | |||||||||||
| log(Ca/H) | |||||||||||
| log(C/H) | |||||||||||
| log(N/H) | |||||||||||
| log(O/H) | |||||||||||
| log(Na/H) | |||||||||||
| log(Mg/H) | |||||||||||
| log(Al/H) | |||||||||||
| log(Si/H) | |||||||||||
| log(P/H) | |||||||||||
| log(S/H) | |||||||||||
| log(Sc/H) | |||||||||||
| log(Ti/H) | |||||||||||
| log(Cr/H) | |||||||||||
| log(Mn/H) | |||||||||||
| log(Fe/H) | |||||||||||
| log(Ni/H) | |||||||||||
| Parallax | [mas] | 7.24 (0.05) | 7.21 (0.07) | 7.24 | 7.24 (0.05) | ||||||
| Distance | [pc] | 138.21 (0.9) | 138.65 (1) | 126.00 | 138.21 | 138.21 (0.9) | |||||
| Composition | H | H | |||||||||
| Proper motion (right ascension) | [mas/yr] | -30.03520723 (0.05) | -30.07390546 (0.1) | -30.035 (0.05) | |||||||
| Proper motion (declination) | [mas/yr] | -43.48516356 (0.04) | -43.34054312 (0.1) | -43.485 (0.04) | |||||||
| Variability | |||||||||||
| Magnetic | |||||||||||
| Bd | [MG] | ||||||||||
| Infrared excess (disk) | |||||||||||
| Binarity | |||||||||||
| B magnitude | 15.17 | ||||||||||
| V magnitude | 15.36 | 15.36 | |||||||||
| R magnitude | 15.70 | ||||||||||
| I magnitude | |||||||||||
| J magnitude | 15.67 (0.06) | ||||||||||
| H magnitude | 15.53 (0.1) | ||||||||||
| K magnitude | |||||||||||
| u magnitude | |||||||||||
| g magnitude | |||||||||||
| r magnitude | |||||||||||
| i magnitude | |||||||||||
| z magnitude | |||||||||||
| G magnitude | 15.38 (0.002) | 15.40 | 15.38 | 15.38 (0.003) | |||||||
| BP magnitude | 15.28 (0.002) | 15.24 | |||||||||
| RP magnitude | 15.56 (0.002) | 15.56 | |||||||||
| Pan g magnitude | 15.24 (0.005) | ||||||||||
| Pan r magnitude | 15.59 (0.003) | ||||||||||
| Pan i magnitude | 15.89 (0.002) | ||||||||||
| Pan z magnitude | 16.14 (0.004) | ||||||||||
| Pan y magnitude | 16.30 (0.01) | ||||||||||
| E(B-V) | 0.011 | ||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

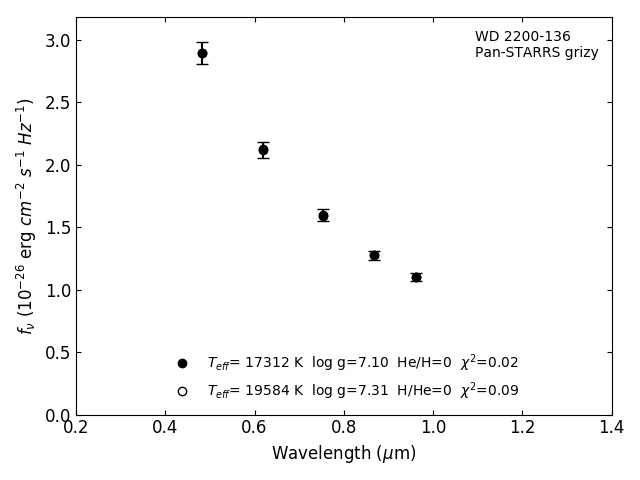

Photometric fit
