WD 2314+064
All names: Gaia DR3 2664365374183501312, PG 2314+064, PB 5312, GALEX J231650.1+064128, SDSS J231650.26+064128.3, USNO-B1.0 0966-00612150, WD 2314+064, Gaia EDR3 2664365374183501312, Gaia DR2 2664365374183501312
| Parameter | Unit | Gaia EDR3 | Pan-STARRS DR1 | MWDD H | Gaia DR2 | Stilism | Gianninas et al. 2011 | Koester et al. 2009 | Vincent et al. 2024 | Simbad | White Dwarf Catalog (McCook & Sion 1999) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Right ascension | 23 16 50.30 (0.06) | 23 16 50.30 (0.07) | 23 16 50.30 | 23 16 50.24 (0.06) | 23 16 49.30 | ||||||
| Declination | 06 41 28.44 (0.04) | 06 41 28.43 (0.05) | 06 41 28.44 | 06 41 28.41 (0.04) | 06 40 59.52 | ||||||
| Spectral type | DA | DA | DA | DA2.7 | DA | ||||||
| Effective temperature | [K] | 15634.0 | 18470.0 (290) | 17981.0 (30) | 17216.0 (324) | ||||||
| log(g) | [cgs] | 7.89 | 8.05 (0.05) | 7.88 (0.006) | 8.00 (0.02) | ||||||
| Mass | [M☉] | 0.552 | 0.65 (0.03) | 0.616 (0.01) | |||||||
| log(Luminosity) | [L☉] | ||||||||||
| Cooling age | [Gyr] | 0.1434 | |||||||||
| log(H/He) | |||||||||||
| log(C/He) | |||||||||||
| log(Ca/He) | |||||||||||
| log(Ca/H) | |||||||||||
| log(C/H) | |||||||||||
| log(N/H) | |||||||||||
| log(O/H) | |||||||||||
| log(Na/H) | |||||||||||
| log(Mg/H) | |||||||||||
| log(Al/H) | |||||||||||
| log(Si/H) | |||||||||||
| log(P/H) | |||||||||||
| log(S/H) | |||||||||||
| log(Sc/H) | |||||||||||
| log(Ti/H) | |||||||||||
| log(Cr/H) | |||||||||||
| log(Mn/H) | |||||||||||
| log(Fe/H) | |||||||||||
| log(Ni/H) | |||||||||||
| Parallax | [mas] | 9.97 (0.07) | 9.96 (0.08) | 9.97 | 9.97 (0.07) | ||||||
| Distance | [pc] | 100.32 (0.7) | 100.42 (0.8) | 97.00 | 100.32 | 100.32 (0.7) | |||||
| Composition | H | H | |||||||||
| Proper motion (right ascension) | [mas/yr] | 56.26943642 (0.06) | 56.05249917 (0.1) | 56.269 (0.06) | |||||||
| Proper motion (declination) | [mas/yr] | 1.365897073 (0.05) | 1.167467745 (0.09) | 1.366 (0.05) | |||||||
| Variability | NOV | ||||||||||
| Magnetic | |||||||||||
| Bd | [MG] | ||||||||||
| Infrared excess (disk) | |||||||||||
| Binarity | |||||||||||
| B magnitude | 16.01 | ||||||||||
| V magnitude | 15.93 | ||||||||||
| R magnitude | 16.00 | ||||||||||
| I magnitude | |||||||||||
| J magnitude | 16.50 (0.01) | ||||||||||
| H magnitude | 16.52 (0.02) | ||||||||||
| K magnitude | 16.59 (0.04) | ||||||||||
| u magnitude | 16.04 (0.02) | ||||||||||
| g magnitude | 15.92 (0.02) | ||||||||||
| r magnitude | 16.22 (0.02) | ||||||||||
| i magnitude | 16.50 (0.02) | ||||||||||
| z magnitude | 16.77 (0.02) | ||||||||||
| G magnitude | 16.08 (0.003) | 16.09 | 16.08 | 16.08 (0.003) | |||||||
| BP magnitude | 16.02 (0.003) | 16.00 | |||||||||
| RP magnitude | 16.22 (0.006) | 16.22 | |||||||||
| Pan g magnitude | 15.95 (0.008) | ||||||||||
| Pan r magnitude | 16.24 (0.003) | ||||||||||
| Pan i magnitude | 16.53 (0.003) | ||||||||||
| Pan z magnitude | 16.76 (0.005) | ||||||||||
| Pan y magnitude | 16.93 (0.007) | ||||||||||
| E(B-V) | 0.017 | ||||||||||
* Constant surface field
Special notes:
Spectra
Controls
Normalize at:
Normalize by mean flux
Range:
x:
to
y:
to
Spectra available:
Spectra without link are available upon request
Absorption lines
Photometric filters
BVRI
ugriz

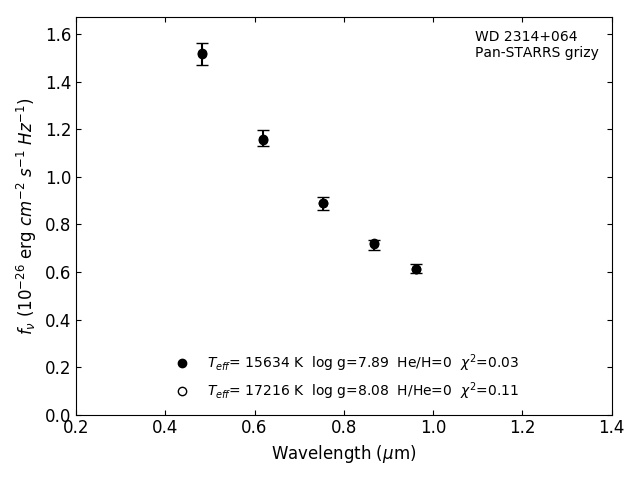

Photometric fit
